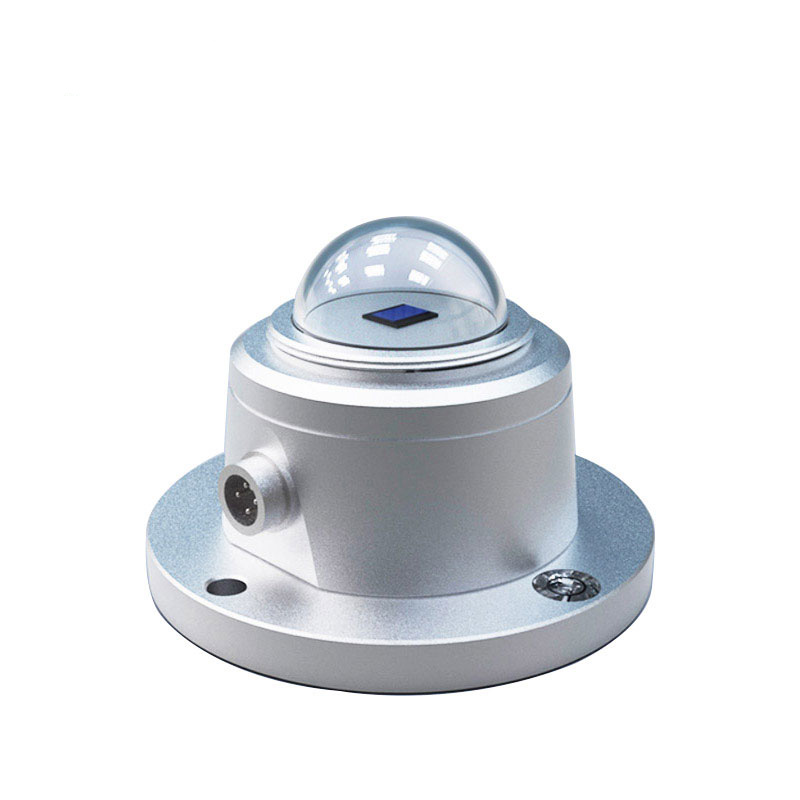

Solar Radiation Sensor
Model：FT-FS1
Brand：fengtu
Solar Radiation Sensor is an instrument used to measure the total solar radiation, which uses the working principle of thermocouples to measure the energy of solar radiation.
Get a Free Quote- Product details
- Related products
- Related articles
1.Solar Radiation Sensor Technical Specifications
Solar Radiation Sensor is an instrument used to measure the total solar radiation, which uses the working principle of thermocouples to measure the energy of solar radiation.
Power supply: DC12V
Power consumption: 0.036W
Working environment: -20~65℃
Communication interface: RS485
Working current: 3mA@DC12V
Minimum data interval: 0.5S
2. Solar Radiation Sensor Parameters
Measurement element: irradiance
Measuring range: 0-2000W/m²
Resolution: 1W/m²
Response time: ≤10S
Accuracy: <±3%
Annual stability: ≤±3%
Zero drift: ≤6 W/m²
3. Solar Radiation Sensor Product Dimensions
