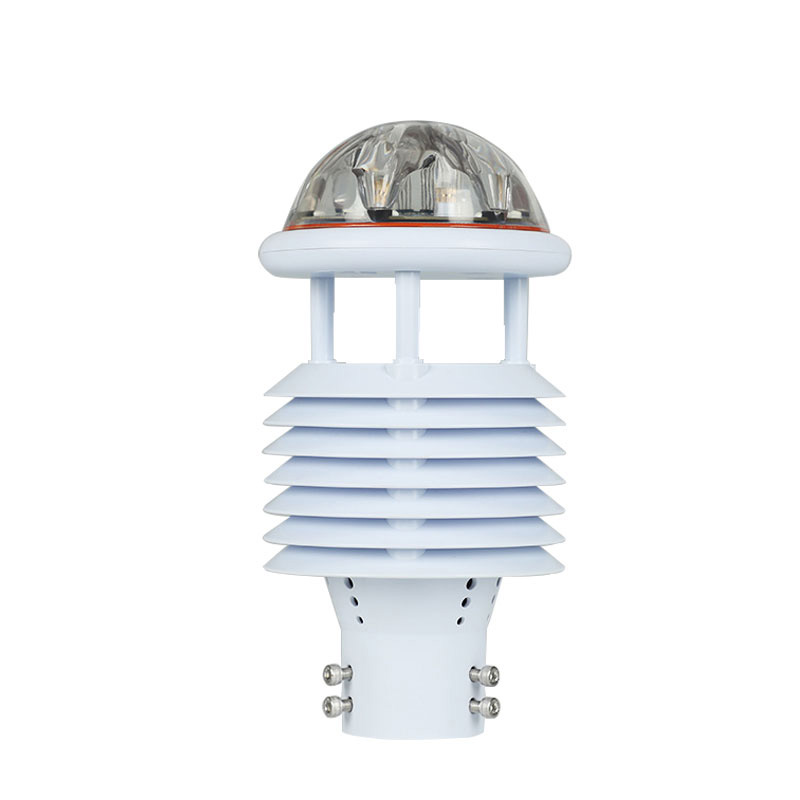

Outdoor Weather Sensors

1.Outdoor Weather Sensors Product Introduction

Outdoor Weather Sensors are used to accurately monitor outdoor weather conditions and help users understand current weather conditions and future weather trends.Shandong Fengtu Internet of Things Technology Co., Ltd., as a company specializing in the development, production and sale of micro-meteorological instruments, has been committed to the promotion and application of micro-meteorological instruments and meteorological environment solutions. With a complete production chain, a strong technical team and a comprehensive marketing team, the meteorological products we develop and produce, such as ultrasonic wind speed and direction instruments, five-element micro-meteorological instruments, six-element micro-meteorological instruments and small automatic weather stations, have been widely used in meteorological monitoring, urban environmental monitoring, wind power generation, marine vessels, aviation airports, bridges and tunnels, etc., with customers all over the country, and have achieved good social and economic benefits.

Compared with traditional micro-meteorological instruments, our products overcome the need for high-precision timers and avoid inaccurate measurements caused by sensor startup delays, demodulation circuit delays, and temperature changes.

Outdoor Weather Sensors innovatively integrates air temperature, air humidity, wind speed, wind direction, atmospheric pressure, optical rainfall, total radiation, PM2.5, and PM10 monitoring through a highly integrated structure, which can realize 24-hour continuous online monitoring of outdoor meteorological parameters and output nine parameters to users at one time through a digital communication interface. The product has a compact structure, beautiful and elegant appearance, and is a highly integrated product.

2. Outdoor Weather Sensors Features

1. The ultrasonic probe is hidden in the top cover to avoid interference from rain and snow accumulation and avoid being blocked by natural wind (utility model patent, patent number ZL 2020 2 3215713.X)☆

2. The principle is to emit a continuously variable frequency ultrasonic signal and detect the wind speed and direction by measuring the relative phase (invention patent, patent number ZL 2021 1 0237536.5)☆

3. Wind speed, wind direction, temperature, humidity, air pressure, optical rainfall, total radiation, PM2.5, PM10 nine elements integrated (utility model patent, patent number ZL 2020 2 3215649.5)☆

4. Using advanced sensing technology, real-time measurement, no start-up wind speed☆

5. Strong anti-interference ability, with watchdog circuit and automatic reset function to ensure stable operation of the system

6. High integration, no moving parts, zero wear

7. Maintenance-free, no need for on-site calibration

8. ASA engineering plastics are used for outdoor applications without discoloration all year round

9. The product design output signal is standardly equipped with RS485 communication interface (MODBUS protocol); 232, USB, Ethernet interface are optional, supporting real-time data reading☆

10. Optional wireless transmission module, minimum transmission interval 1 minute

11. The probe adopts a snap-on design, which solves the problem of looseness during transportation and installation☆

3. Outdoor Weather Sensors Technical Specifications

1. Wind speed: Measurement principle: ultrasonic, 0-60m/s (±0.1m/s), resolution: 0.01m/s; (invention patent, patent number: ZL 2021 1 0237536.5)

2. Wind direction: Measurement principle: ultrasonic, 0-360° (±2°); resolution: 1°; (invention patent, patent number: ZL 2021 1 0237536.5)

3. Air temperature: Measurement principle: diode junction voltage method, -40-60℃ (±0.3℃), resolution 0.01℃; (Calibration certificate from Beijing Meteorological Bureau)

4. Air humidity: Measurement principle: capacitive, 0-100%RH (±3%RH), resolution: 0.1%RH; (Calibration certificate from Beijing Meteorological Bureau)

5. Atmospheric pressure: Measurement principle: piezoresistive, 300-1100hpa (±0.25%), resolution: 0.1hpa; (Calibration certificate from Beijing Meteorological Bureau)

6.PM2.5: 0-1000ug/m3 (±10%)

7.PM10: 0-1000ug/m3 (±10%)

8. Total radiation: 0~1242W/㎡ (＜±3%)

9. Optical rainfall: 0-4mm/min (≤±4%) (invention patent, patent number ZL 2022 1 1306149.3)

10. Power: 0.84W

11. The manufacturing enterprise has ISO quality management system, environmental management system and occupational health management system certification☆

12. The manufacturer has a computer software registration certificate☆

13. The manufacturer is a 3A grade credit enterprise☆

4. Outdoor Weather Sensors Product Dimensions

5. Outdoor Weather Sensors Product Structure

1. Optical rainfall and global radiation sensors

2. Control circuit

3. North arrow

4. Ultrasonic wind speed and direction

5. Venetian louver PM2.5, PM10

6. Temperature, humidity and air pressure monitoring location

7. Bottom fixing flange

6. Outdoor Weather Sensors Product Wiring Definition
