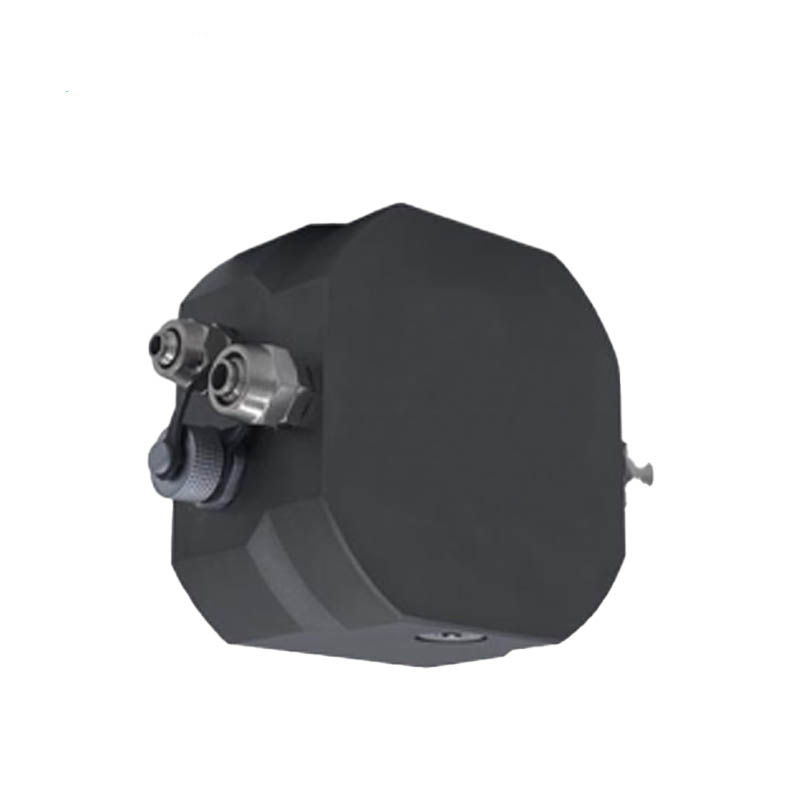

Hydraulic Static Level

Model：FT-SZ2

Brand：fengtu

Hydraulic Static Level is measured by measuring the change of liquid level pressure relative to the reference point reservoir tank.

Get a Free Quote

Product details
Related products
Related articles

1.Hydraulic Static Level Product Introduction

Hydraulic Static Level is measured by measuring the change of liquid level pressure relative to the reference point reservoir tank.The differential pressure static level is a precision instrument based on the principle of communicating vessels. It measures the relative changes in the liquid level heights of several interconnected liquid storage tanks installed at the measured point and the liquid level heights of the measuring base point (fixed point) liquid tanks, and infers the settlement changes of each measuring point relative to the base point.

2. Hydraulic Static Level Application Areas

Rail transit roadbed settlement monitoring

Subway support wall settlement monitoring

Mountain and buildings above the tunnel

Highway roadbed and slope settlement detection

Pier and foundation pit settlement detection

Nuclear power plants, large hydropower plants

Foundations of dams, water conservancy projects and high-rise buildings

Comprehensive pipeline corridor settlement monitoring

3. Hydraulic Static Level Technical Parameters

project	parameter
Measuring medium	liquid
Pressure form	Differential Pressure
Pressure range	0～200mmH20,0～1000mmH20,0～20mH20 (customizable within the range)
Temperature range	-40~100℃
Comprehensive accuracy	0.05～0.1%FS
Resolution	0.01mm
Output signal	RS485-RTU
Output signal	4～20mA
Supply voltage	12V DC (7～30VDC)
Insulation resistance	≥1000MΩ/100VDC
Compensation temperature	-20～60℃ (Specify when ordering special temperature zone, can be customized to compensate for ultra-low temperature of minus 30℃)
Medium temperature	-40～85℃
Ambient temperature	-40～80℃
Storage temperature	-40～85℃; Relative humidity: 0～95% RH
Response time	≤5mS
Overload pressure	150%FS
Destruction pressure	3 times the range
Electrical Connections	Waterproof aviation plug, direct lead
Protection level	IP67, IP68
Connecting cables	Four-core waterproof aviation connector
Connection materials	Aviation aluminum alloy, oxidation
Process connection	Liquid guide tube: Ф10mmPU tube/air guide tube: Ф8mmPU tube/customizable
