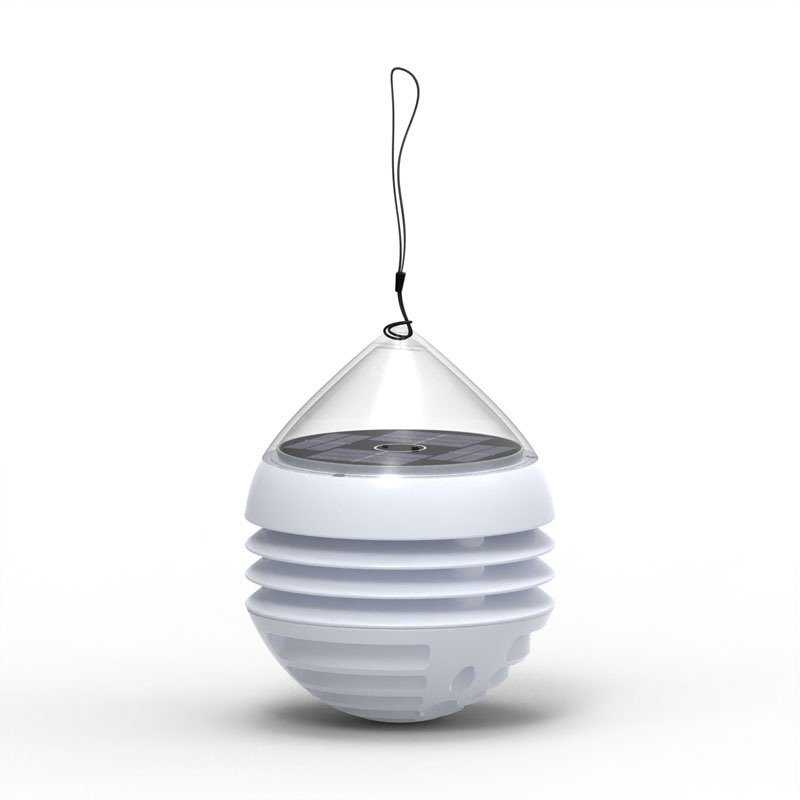

Agricultural Microclimate Observation Instrument
Model：FT-WN3
Brand：fengtu
Agricultural Microclimate Observation Instrument is a multi-element agricultural meteorological monitoring device that can collect meteorological environmental parameters such as temperature, humidity, air pressure, light intensity, CO2, and photosynthesis in real time.
Get a Free Quote- Product details
- Related products
- Related articles
1、Agricultural Microclimate Observation Instrument Product Overview
Agricultural Microclimate Observation Instrument is a multi-element agricultural meteorological monitoring device that can collect meteorological environmental parameters such as temperature, humidity, air pressure, light intensity, CO2, and photosynthesis in real time.Agricultural Microclimate Observation Instrument employs a high-precision sensor module to monitor key environmental parameters such as air temperature, humidity, atmospheric pressure, light intensity, CO2, and photosynthesis in real time. Monitoring data is wirelessly transmitted to a cloud platform via low-power IoT technology, allowing users to view real-time data and historical trend curves anytime through a client application. The device features a built-in lithium battery, solar charging, and an intelligent sleep algorithm, meeting the needs of long-term unattended monitoring. Its waterproof casing allows it to withstand complex agricultural environments such as rain, snow, high temperatures, and high humidity. No installation is required; simply press a switch to operate.
Agricultural Microclimate Observation Instrument provides precise environmental data support for agricultural production, helping growers scientifically regulate temperature, light, water, and fertilizer, optimize crop growth environments, reduce disaster risks, and improve agricultural production efficiency and product quality. It is particularly suitable for greenhouse agriculture, facility agriculture, field planting, smart agricultural parks, and seed breeding bases.
2、Agricultural Microclimate Observation Instrument Product Features
Simple, convenient, and installation-free operation
High sensor data accuracy
Low power consumption and long battery life
Built-in lithium battery, no external power supply required
Solar and AC charging
Cat1 IoT transmission
Three years of free data plan
Multiple configurable parameters
Password-free login via QR code
API integration available
3、Agricultural Microclimate Observation Instrument Technical parameters
| Detection parameters | Measurement range | Resolution | Precision | Unit |
| Temperature | -40~80 | 0.01℃ | ±0.3 | ℃ |
| Humidity | 0~100 | 0.01%RH | ±3%(20%~80%) | % Relative Humidity |
| Atmospheric pressure | 30~110 | 0.01Kpa | ±0.25% | Kpa |
| Illumination | 0~157000 | 1lux | ±5%FS | lux |
| CO2 | 0~5000 | 1ppm | ±50 | ppm |
| Photosynthesis | 0~2900 | 1μmol/m²/s | ±5%FS | μmol/m²/s |
4、Agricultural Microclimate Observation Instrument Electrical Specifications
Built-in Lithium Battery Capacity: 6000mAh
AC Charging Port: TYPE-C (5V/2A), fast chargers are prohibited.
Battery Charging Time: 3 hours @ 4.1V
No Solar Power Operating Time: 15*24 hours
Solar Panel Power: 1W
Data Upload Frequency: Default upload every 5 minutes
SIM Card Duration: 3 years (Data renewal must be contacted before expiration)
