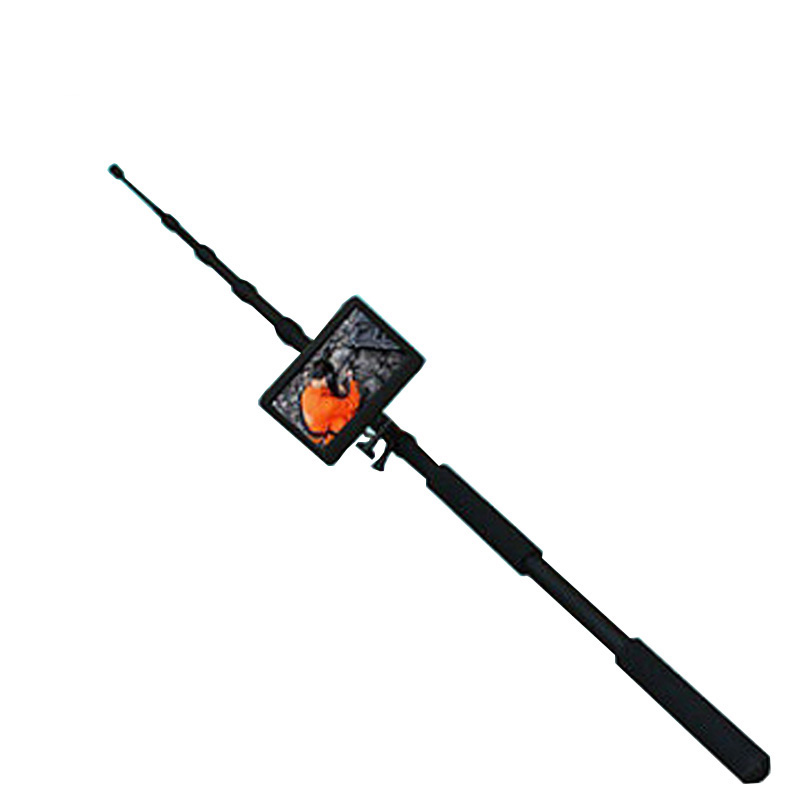

Infrared life detector

Infrared life detector detailed product introduction and technical parameters

Infrared life detector is mainly used in areas where rescue workers cannot reach immediately due to sudden natural disasters such as earthquakes, mudslides, floods, and building collapses.

a.Camera equipment: 1080P HD Sony CMOS

b.Light source: 12 infrared visible light LED beads for supplementary light (adjustable brightness)

c.Illumination: 0.0001Lux/F1.2

d.Lens: 3.6mm F1.2(H)120°

e.Focal length: 20-100cm

f.Camera style: connecting rod integrated type and articulated separated type

g.Waterproof level: connecting rod integrated waterproof level IP68, hinged separated type IP67

h.Audio & pickup: -48dB, speaker 1W, 300㎡

i.WiFi protocol 802.11 a/b

j.WiFi channel 2.4000-2.4835Ghz

k.WiFi power <16dBm

2) Infrared life detector aluminum alloy telescopic rod parameters

a.Telescopic pole length: about 5 meters after extension (actually about 4.95 meters) and 1.19 meters after contraction

b.Telescopic rod weight: 1.3kg

c.Number of telescopic rod sections: 5 sections

3) Infrared life detector HD display parameters:

a.Screen size: 7-inch LCD IPS omnidirectional screen

b.Screen pixels: 1024*600px

c.Screen brightness: 500cd

d.Video input: Full HD 1080P TVI

e.Video compression format: H.264

f.Video storage format: AVI

g.Main operating system: windows and Mac OS

h.Interface: USB2.O

i.System language: multiple languages available

j.Power supply: DC5-12V 2A

k.Video LED control output: high brightness, low gray, 8-level control

l.Battery: 7500mhA lithium battery

m.Memory card: Standard 64G memory card

4) Infrared life detector outer packaging box parameters:

a.Outer box size: 119*21*14cm

b.Packing weight: 7.5kg Product parameters:

1) Some parameters of the front-end high-definition camera
