location：Home>Products>Sensors>Water quality sensor>Online cod turbidity sensor

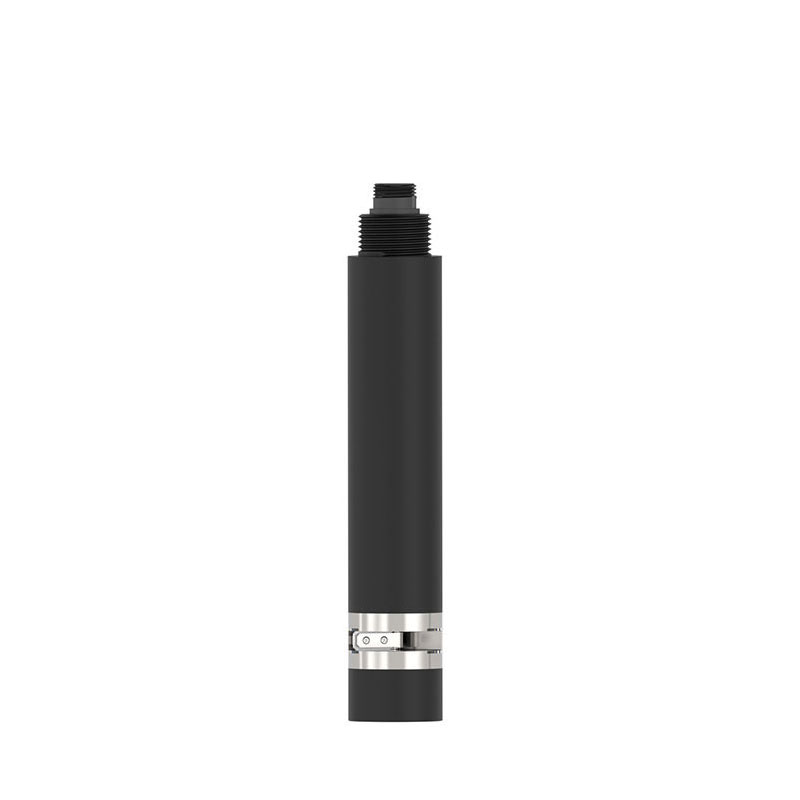

Online cod turbidity sensor

Model：FT-S1S

Brand：fengtu

Online cod turbidity sensor requires no reagents and is pollution-free. It can measure cod and turbidity of water quality online for a long time.

Get a Free Quote

Product details
Related products
Related articles

one. Online cod turbidity sensor working principle

Online cod turbidity sensor requires no reagents and is pollution-free. It can measure cod and turbidity of water quality online for a long time.The sensor uses two light sources for measurement, one for COD measurement and one for turbidity measurement.

Because organic matter dissolved in water absorbs ultraviolet light, the COD value can be measured through the transmittance of the light source, along with turbidity measurement, automatic turbidity compensation, and temperature collection for temperature compensation.

two. Online cod turbidity sensor technical parameters

Measurement principle	UV254 absorption method dual light source measurement
COD range	Default 0~500mg/L, 0~200mg/L can be customized
resolution	0.1mg/L
Accuracy	±5%, ±0.3℃
NTU measuring range	Default 0-400NTU, 0-200NTU can be customized
resolution	0.1NTU
temperature compensation	Automatic temperature compensation
Self-cleaning function	Equipped with an automatic cleaner to prevent biological adhesion and light window pollution to ensure long-term monitoring stability; the automatic cleaning time and cleaning frequency can be set, and the power consumption is 0.7W
Output mode	RS-485 (Modbus/RTU)
Storage temperature	-5-+65℃
working environment	0～50℃,≤0.2MPa
Installation method	Submersible installation, 3/4NPT mounting thread
Cable length	5m
powered by	DC: 12V-24V
Protection level	IP68
Calibration method	Two point calibration
Shell material	ABS+316L stainless steel

three. Online cod turbidity sensor size/installation

1.Online cod turbidity sensor size chart

Online cod turbidity sensor size chart

2.Online cod turbidity sensor wiring diagram

The cable is a 5-core shielded wire:

Red wire - power cord, black wire - ground wire, green wire - 485A, white wire - 485B

3.Online cod turbidity sensor installation

Online cod turbidity sensor installation

Note: The sensor cannot be installed upside down and must be installed at an angle of at least 15 degrees.

Four. Online cod turbidity sensor maintenance and care

Sensor maintenance:

If the sensor needs to be cleaned, use warm water and an appropriate amount of detergent to clean it.

Notice:

Avoid strong vibrations that may damage the transparent glass in front of the ring, and do not scratch it with hard objects.

five. Online cod turbidity sensor user calibration

The sensor has been rigorously calibrated when it leaves the factory, and generally does not require user calibration. If user calibration is performed, you can execute the factory reset command if you want to restore it.

5.1 Zero point calibration

Integrate the sensor into the container. Use distilled or purified water for the solution. After the value stabilizes for 30 seconds, perform turbidity zero point calibration and COD zero point calibration according to the communication instructions.

5.2 Slope calibration

Integrate the sensor into the solution container. The turbidity value of the solution is known. After the value stabilizes for 30 seconds, perform turbidity slope calibration according to the communication instructions.

Integrate the sensor into the solution container. The COD value of the solution is known. After the value stabilizes for 30 seconds, perform COD slope calibration according to the communication instructions.
