location：Home>Products>Weather Station>Automatic Mechanical Station>Automatic Agriculture Weather Station
Automatic Agriculture Weather Station
Model：FT-QC10
Brand：fengtu
This weather station is specially designed for agriculture using, such as farm, greenhouse, etc. It can monitor wind speed, wind direction, temperature, humidity, pressure, rainfall, radiation/illuminance, soil temperature, soil moisture, soil conductivity This is the standard configuration, if you need to add other items like CO2, O3, all can integrate to the station.
Get a Free Quote- Product details
- Related products
- Related articles
Ⅰ Brief Introduction
This weather station is specially designed for agriculture using, such as farm, greenhouse, etc. It can monitor wind speed, wind direction, temperature, humidity, pressure, rainfall, radiation/illuminance, soil temperature, soil moisture, soil conductivity This is the standard configuration, if you need to add other items like CO2, O3, all can integrate to the station.
We already got CE and RoHS certificate for this station, and our company has ISO9001 and ISO14001 certificates.
Meanwhile we are keep innovation for agriculture weather station, and already make new and highly integrated station without maintenance.
Ⅱ Technical Data
| Item | Range | Resolution | Accuracy |
| Wind Speed | 0～60m/s | 0.1m/s | ±(0.3+0.03V)m/s |
| Wind Direction | 0～360°(16 directions) | 1/16 | <3°(>1.0m/s) |
| Ambient Temperature | -40℃～60℃ | 0.1℃ | ±0.3℃ |
| Ambient Humidity | 0～100%RH | 0.1%RH | ±2%RH |
| Soil Temperature | -50℃～80℃ | 0.1℃ | ≤±0.2℃ |
| Soil Humidity | 0～100%RH | 0.1%RH | ±2%RH |
| Soil Conductivity | 0～20ms/cm | 0.1ms | ±2% |
| Pressure | 300kPa～1100kPa | 0.1kPa | ±0.3kPa |
| Rainfall | ≦4mm/min | 0.01mm | ±0.2mm |
| Illuminance | 0～200k Lux | 1Lux | ±2% |
| Global Radiation | 0～2000W/m² | 0.1W/m² | Range:300-3000nm |
| Solar Panel | 30W/50W, Monocrystalline Silicon Charger controller:150W, MPPT function. Battery:20/50Ah | ||
| Collector | CPU:ARMv6-M Free RTOS: Embedded Input Voltage:5V Working Current:20mA Output:RS485(Standard), RS232, Lora Data Upload Interval:30-65535s | ||
| Supply | DC12-24V, Solar Panel | ||
| Power | <1W@12V | ||
| Communication Mode | Modbus, RS 485 | ||
| Operation Temperature | -20℃～50℃ | ||
| IP Grade | IP66 | ||
| Upright tube | 3m, Carbon Steel | ||
| Android Screen | CPU: Quad-core, CortexTM-A7 GPU: Mali400MP2 RAM/ROM:4096bits DDR3L/32768bits NAND Flash Screen:1024*600 RGB LCD Power Supply:12V/1A Version:4.4.2 | ||
| GPS | Option | ||
| Certificate | CE, RoHS,ISO9001, ISO14001 | ||
Ⅲ Features
Factory Features
1. All parameters we got the calibration certificate from Beijing Meteorological Service(It’s the most authoritative in China).
2. Professional develop and research team, we dedicate for the new technology research to make our devices better and better.
3. Our factory is 3A credit enterprise, meanwhile we have ISO Quality Management System, Environmental Management System, Occupation Health Management System. We also get the certificate of IPMS and Computer Software Registration.
Products Features
1. We can integrate any sensors as client’s requirements.
2. Low consumption collector, sleeping mode is less than 50uA.
3. Support i-style communication, with Lora and GPRS.
4. Support LED screen, the size can be customer made.
5. Easy to install. We will supply video for installation.

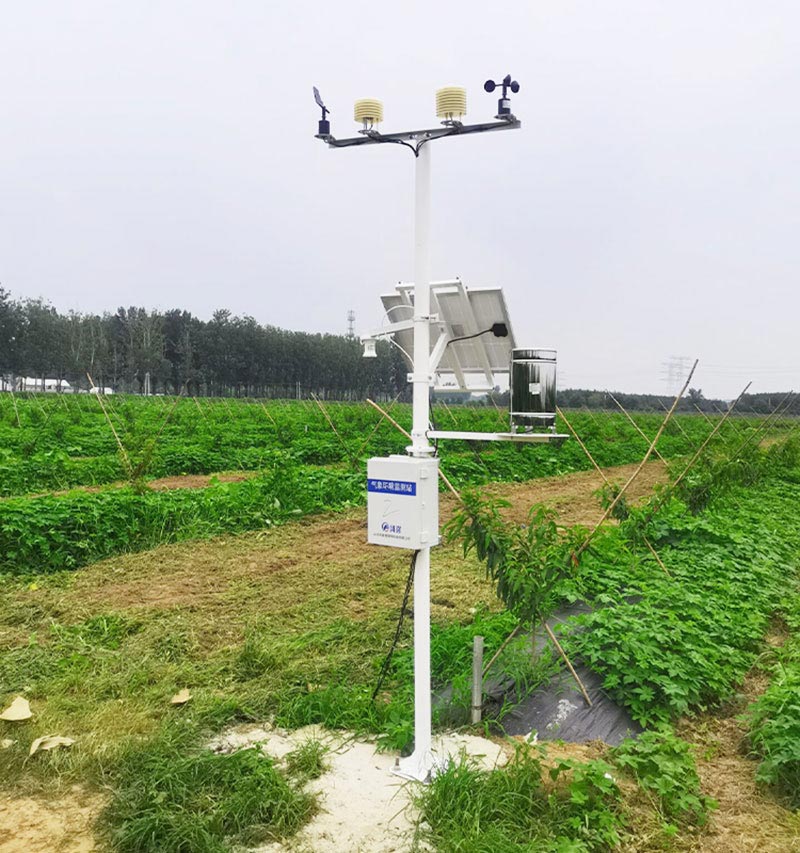

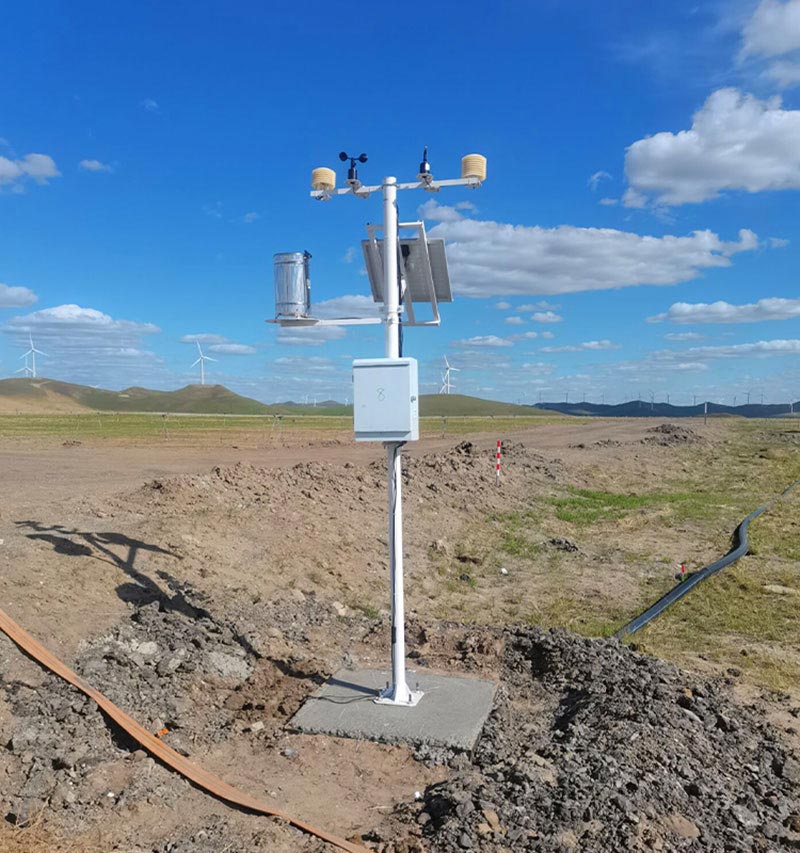

Ⅳ Finished Project
Ⅴ After-sale Service
1. 1 year quality guarantee.
2. 24 hours online after sale service.
3. Engineer Door-Visiting Service is available.
