Model:FT-SQ6+
Brand:fengtu

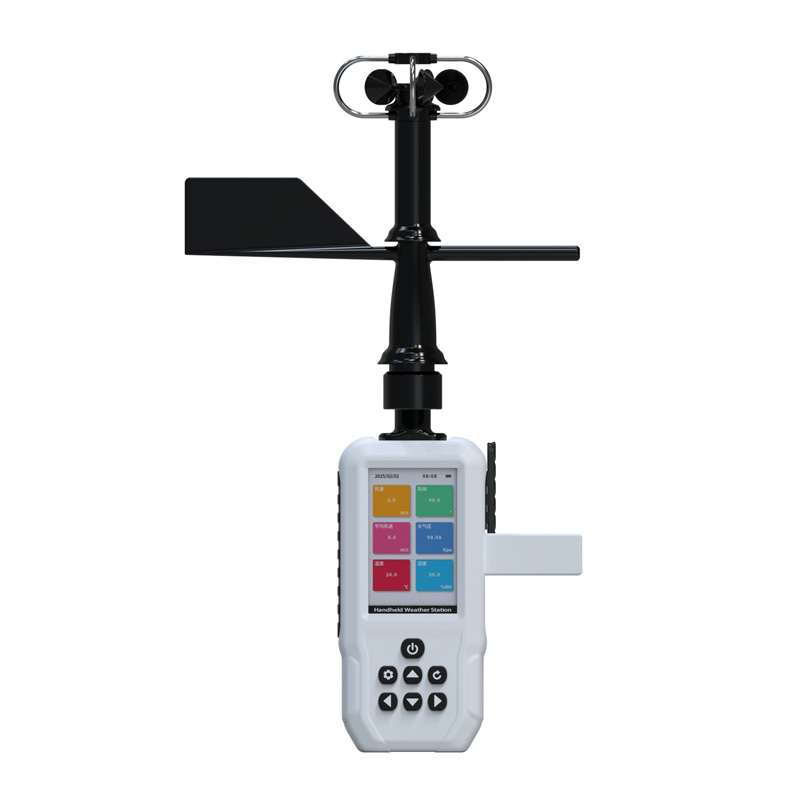

1.Six Elements 4G handheld weather station product introduction
Six Elements 4G handheld weather station contains elements such as Wind speed, wind direction, average wind speed, temperature, humidity, atmospheric pressure, 4G upload.It is a movable meteorological observation instrument that is easy to carry, simple to operate, and integrates multiple meteorological elements.The system uses precision sensors and smart chips, which can accurately measure elements such as wind speed, wind direction, average wind speed, temperature, humidity, atmospheric pressure, altitude, thermal index, wet bulb temperature, wave height, dew point temperature, wind chill index, GNSS three-mode positioning and other factors.The built-in large-capacity FLASH memory chip can store meteorological data for at least one year; the Type-C communication interface is convenient for users to further process and analyze meteorological data.
This instrument can be widely used in meteorological, environmental protection, airports, agriculture and forestry, hydrology, military, warehousing, scientific research and other fields.
2.Six Elements 4G handheld weather station feature
1.The LCD screen is 3.5 inches, which can display elements such as wind speed, wind direction, average wind speed, temperature, humidity, atmospheric pressure, altitude, thermal index, wet bulb temperature, wave height, dew point temperature, wind chill index, GNSS three-mode positioning and other factors.☆
2.Built-in electronic compass to realize 360-degree monitoring of wind direction and increase switching between automatic reading and manual reading of wind direction.☆
3.Large-capacity data storage, up to 40,000 meteorological data can be stored (data recording interval can be set between 1 and 60 minutes).
4.Type-C communication interface to realize the reading of internal storage data.☆
5.GNSS three-mode positioning and positioning accuracy is high and fast (a single Beidou can be selected).☆
6.3800mAh lithium battery, low-power design, long-term standby, working and running for 18 hours.☆
7.The structure design is scientific and reasonable, and it is convenient to carry.
8.External DTU-4G module, upload to the cloud platform.The 4G module can be plugged in and removed and replaced at any time.☆
9.Optional triangle bracket.
3.Six Elements 4G handheld weather station technical parameters
Meteorological parameters | Measurement elements | Measurement range | Accuracy | Resolution | unit |
Wind speed | 0-60 | ±0.3 | 0.01 | m/s | |
wind direction | 0-360 | ±3 | 0.1 | Spend | |
Average wind speed | 0-60 | ±0.3 | 0.01 | m/s | |
temperature | -40-125 | ±0.2 | 0.1 | ℃ | |
humidity | 0-100 | ±2 | 0.1 | %RH | |
Atmospheric pressure | 30-110 | ±0.1 | 0.01 | kPa | |
altitude | 0-9165 | ±1 | 1 | m | |
Thermal index | -40-140 | ±0.2 | 0.1 | ℃ | |
Wet bulb temperature | -29-70 | ±0.2 | 0.1 | ℃ | |
Wave high | 0-14 | ±0.2 | 0.1 | m | |
Dew point temperature | 0-70 | ±1 | 0.1 | ℃ | |
Wind-cold index | 0-5 | ||||
GNSS | Three-mode positioning | ||||
Screen | 3.5-inch LCD screen | ||||
Battery | 3800mAh lithium battery | ||||
communication | Type-C interface | ||||
DTU-4G upload cloud platform | |||||
storage | 40,000 data | ||||
Host size | 167*80*30mm | ||||
Overall size | 370*208*80mm | ||||
gross weight | 363.2g |
4.Six Elements 4G handheld weather station configuration instructions
Model elements | SQ6+ |
Wind speed | √ |
wind direction | √ |
Average wind speed | √ |
temperature | √ |
humidity | √ |
Atmospheric pressure | √ |
4G upload | √ |

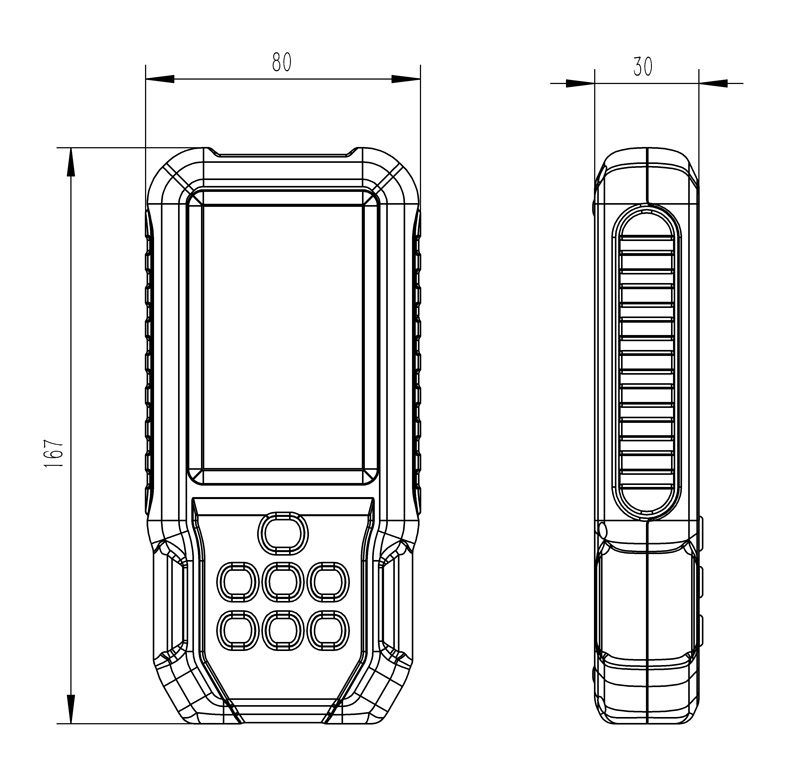

5.Six Elements 4G handheld weather station appearance and size

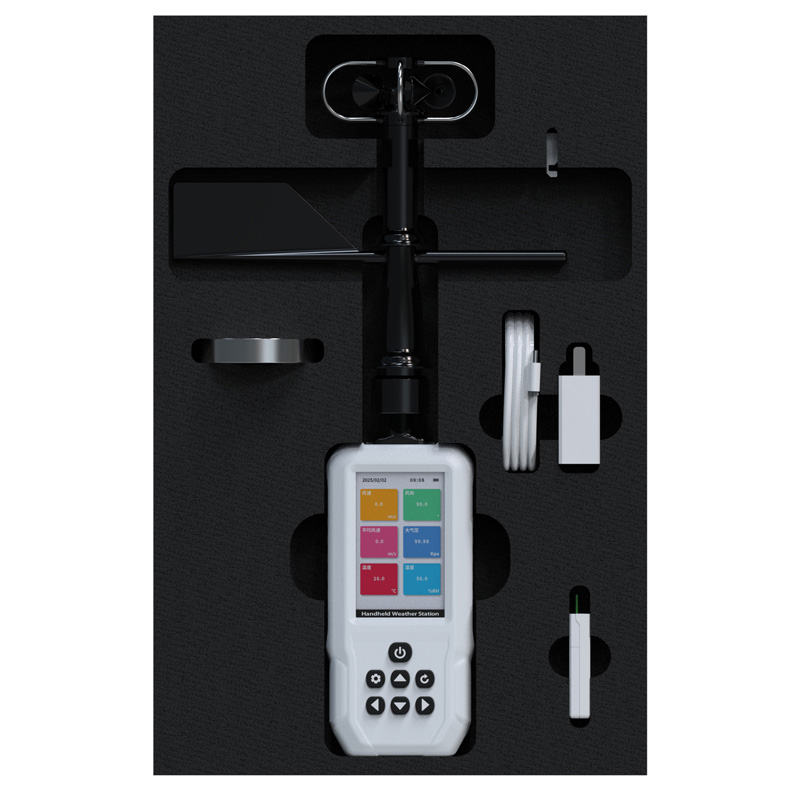

Six Elements 4G handheld weather station whole box accessories
① Wind direction calibration accessories
② Compass
③ Data line
④ Charging head
⑤ DTU-4G upload module
⑥ Host

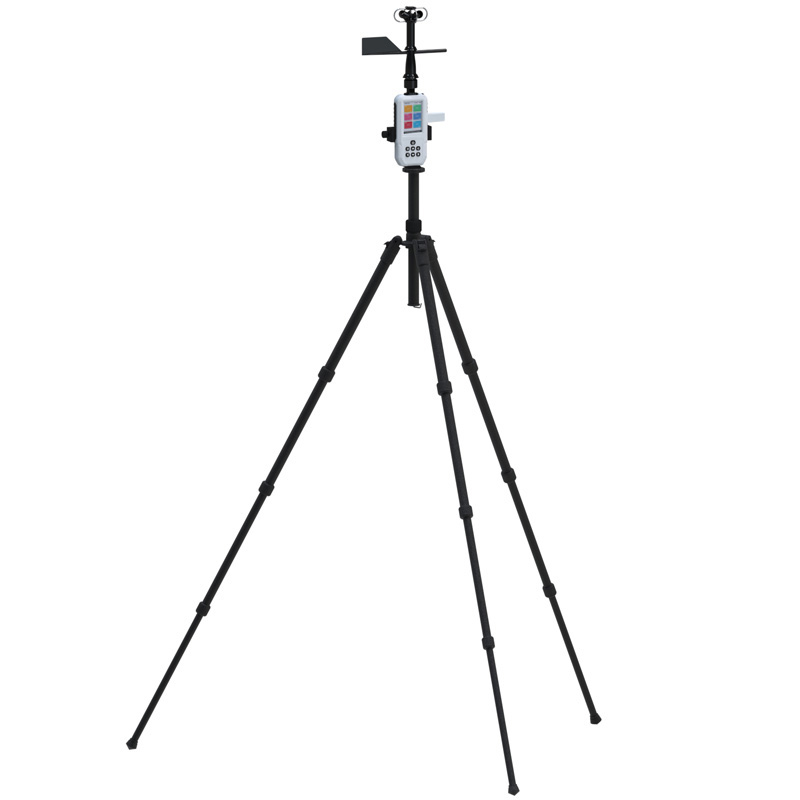

7.Six Elements 4G handheld weather station optional bracket
