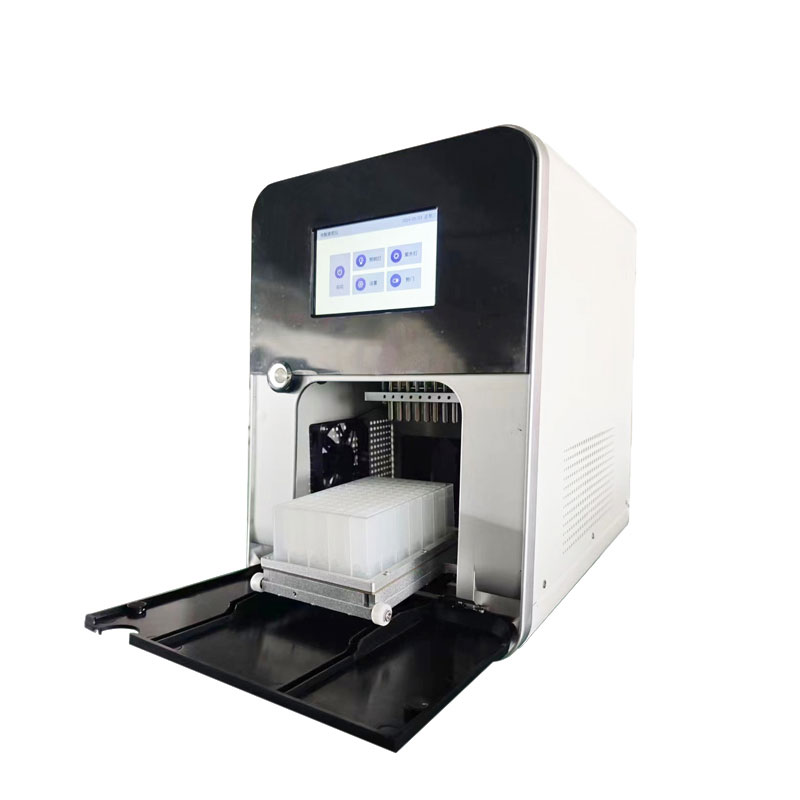

Automated DNA Extraction

Automated DNA Extraction Product Overview:

Automated DNA Extraction can purify nucleic acid from multi-source samples such as whole blood, virus, tissue, plant, bacteria and cultured cells under the condition of matching different kinds of kits.Automated DNA Extraction utilizes the magnetic bead method to extract nucleic acids.  By selecting the appropriate reagent kit, it can automatically isolate and purify high-purity nucleic acids from various sample materials such as blood, tissue, and cells. It boasts strong compatibility (compatible with pre-packaged extraction kits and single-dose reagents), fast extraction speed, high extraction recovery rate, and ease of operation, making it a powerful "assistant" for molecular biology laboratory testing. It can be widely used in scientific research, molecular diagnostics, animal and plant disease detection, and other fields.

Automated DNA Extraction Product Features:

● Flexible and adaptable throughput

For different extraction throughput requirements, users can flexibly choose between single-use reagents or pre-packaged reagents, avoiding reagent and consumable waste.

● Stable results

The cyclic magnetic bead separation ensures high yield and purity of nucleic acid extraction.

● Safe and reliable

Features such as a UV disinfection box and anti-aerosol fan effectively prevent cross-contamination and ensure experimental safety.

● Simple design, compact and portable

The compact size and battery power support make it suitable for automated extraction in various environments, including field and laboratory settings.

Automated DNA Extraction Technical Specifications:

Instrument Methodology: Magnetic bead adsorption (magnetic bead transfer method)

Sample Types: Pharyngeal swabs, whole blood, plasma, serum, genital secretions, urine, exfoliated cells, etc.

Sample Volume: 20-1000 µl

Magnetic Bead Recovery Rate: >95%

Instrument Structure: Mainly composed of magnetic separation module, incubation stage module, electronic control, and casing; optional ultrasonic module

Experimental Procedure: User programmable

Reagent Kit: Single test, pre-packaged

Throughput: 1-16T

Display: 5-inch

Contamination Prevention: UV lamp sterilization and fan ventilation system

Operating Environment: Temperature: 10-30℃, Humidity: ≤70%

Power Supply: 220V~240V, 50/60Hz

Dimensions: 336*251*363 mm (L*W*H)

Net Weight: Less than 14 KG
