Detecting Ice on Wind-turbine Blades

1.Detecting Ice on Wind-turbine Blades Product Introduction

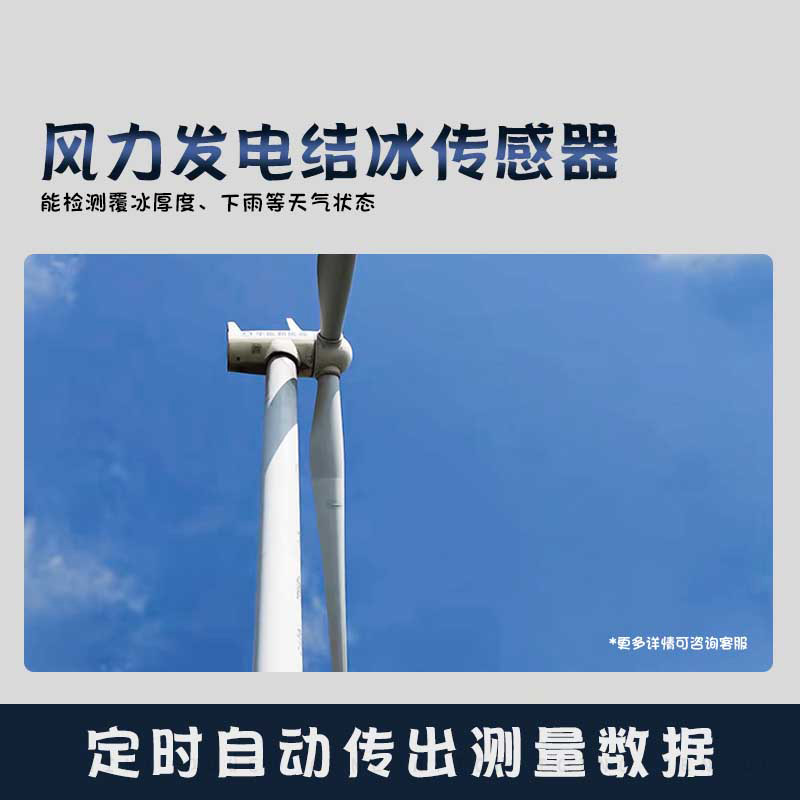

Detecting Ice on wind-turbine Blades is a device that detects Ice on Wind turbine Blades and is able to detect information such as ice accumulation thickness.Detecting Ice on Wind-turbine Blades uses microwave detection technology to monitor the icing information in the sensor sensitive area based on the difference in feedback information of microwave signals to different substances such as ice, water, and air, and calculates the ice thickness based on the strength of the signal and the distribution of ice in the sensor area. This product is generally installed on the blades of wind turbines. By measuring the ice coverage on this sensor, the ice coverage at the current blade position can be determined.

2. Detecting Ice on Wind-turbine Blades Technical Indicators

1. Detection resolution: 0.01mm

(1) Maximum measuring thickness: 30.00mm

(3) Communication method: Wireless 433

(4) Air speed: 10K

(5) Communication protocol: see the communication section

(6) Communication distance: >100 meters (no obstacles)

(7) Power supply: built-in battery

(8) Standby time: >72 hours

(9) Working temperature: -40℃～65℃

(10) Protection level: IP66

(11)Weight:≤210g

3. Features of Detecting Ice on Wind-turbine Blades

(1) It can detect weather conditions such as ice thickness and rain.

(2) It has the functions of temperature detection, battery voltage detection and charging voltage detection.

(3) Automatically transmit measurement data at regular intervals.

(4) The equipment is lightweight and flexible, making it easy to stick tightly to the blade.

(5) Equipped with a photovoltaic charging module to charge the battery.

(6) Sensor thickness is less than 15 mm

(7) Installation at different locations of blades and towers

(8) Solar power supply

(9) Lora wireless communication

(10) Use the same coating as the blade

(11) Combined with micro-weather station information
