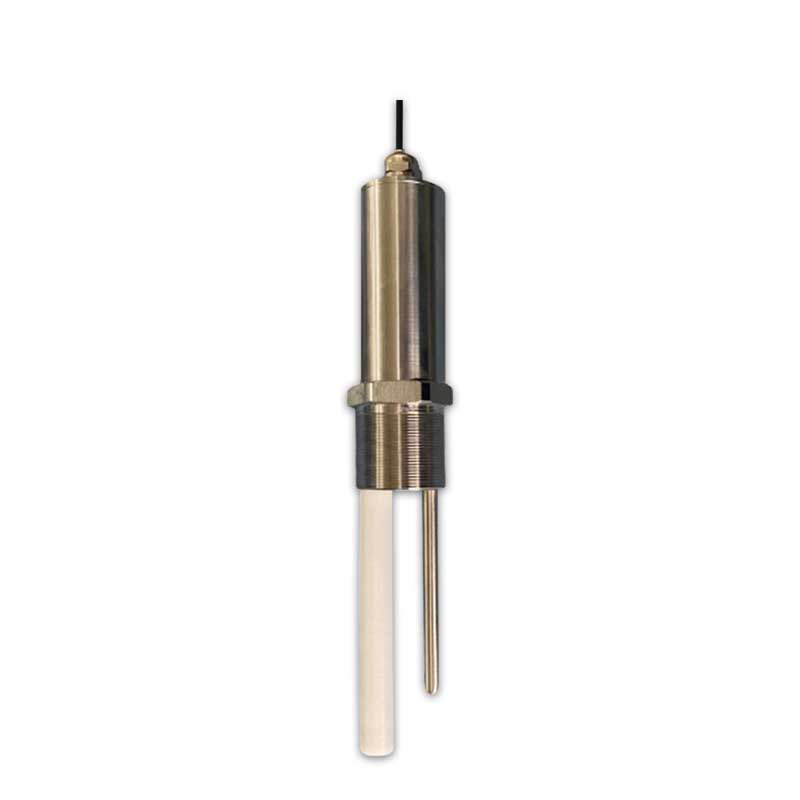

Bridge icing sensor

1.Bridge icing sensor product introduction

Bridge icing sensor is a device used to monitor icy conditions on roads and Bridges, and when the sensor detects icy conditions on roads or Bridges, it sends an immediate alert.Bridge icing sensor adopts microwave disturbance technology. Based on the difference of microwave disturbance signal on feedback signals of different materials such as ice, water and air, it realizes monitoring of icing information in the sensitive area of sensor, and calculates the ice thickness according to the strength of signal and the distribution information of ice in the sensitive area of sensor. The ice alarm value can be set according to different ice thickness information to facilitate the startup of de-icing system.

2. Features of Bridge icing sensor

Using microwave perturbation technology

Suitable for cables of various specifications

Simulated cable icing monitoring

Small structure, light weight, easy to install

High-precision ice detection, unit length percentage analysis and calculation

Monitor icing conditions in real time and start the de-icing system in time

Protect the safe operation of cables, improve power transmission efficiency, and reduce cable freezing accidents

3. Technical parameters of Bridge icing sensor

Operating voltage: 9 VDC~24 VDC

Ice detection range: 0.5mm~30mm

Minimum ice thickness: 0.5mm

Resolution: 0.1mm

Maximum ice thickness: 10mm

Ice alarm thickness value: 0.5~30mm (adjustable)

Communication method: RS485 (Modbus-RTU)

Working temperature: -40℃~85℃

Storage temperature: -55℃~85℃

Working humidity: 0~100%RH

Protection level: IP67

Electromagnetic compatibility: lightning protection and electromagnetic interference protection design

4. Application fields

Fan blades icing

Chassis ice

Cooling Tower

Outdoor Cable

Outdoor communication antenna

Outdoor equipment
