Scattered radiation sensor

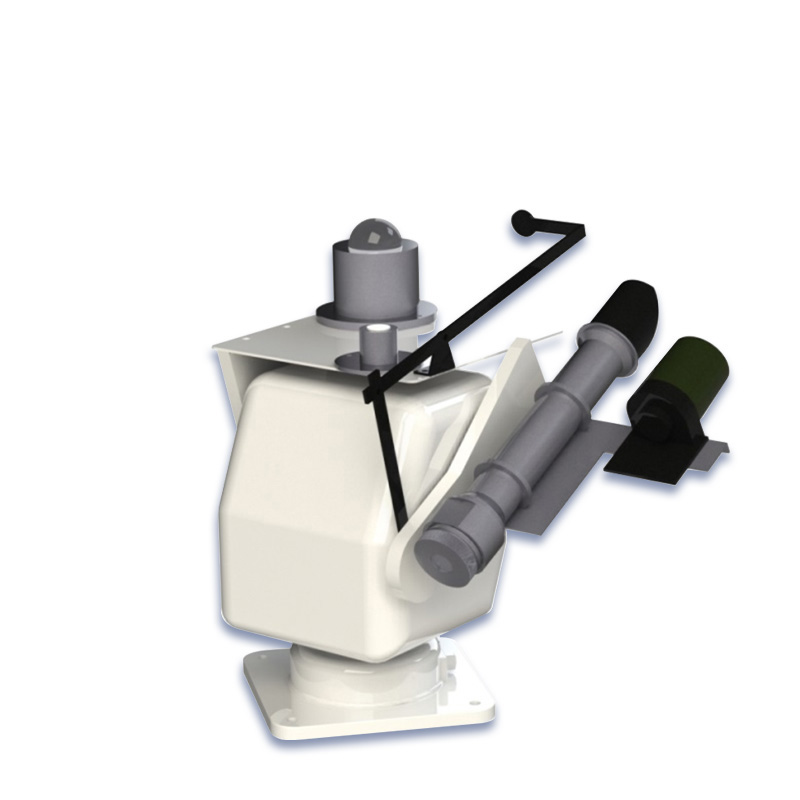

Scattered radiation sensor is specially designed and developed for solar power generation system, which can accurately measure the scattered radiation and other solar radiation data.The Scattered radiation sensor consists of a pyranometer and a sunshade ring. The sunshade ring is used to block direct solar radiation from sunrise to sunset. The sunshade ring consists of a sunshade ring, a ruler, a screw adjustment screw, a bracket, and a chassis. The sunshade ring is 65mm wide and 400mm in diameter. It is fixed on the screw adjustment screw of the ruler, which is engraved with latitude and declination scales. The ruler and the bracket are fixed on the chassis and should be fixed according to the geographical latitude of the mounting location.

Scattered radiation sensor product parameters:

Test range: 0～2000W/㎡

Resolution 1W/㎡

Accuracy ±5%

Sensitivity: 7～14μV／wm-2

Response time: ≤35 seconds (99%)

Internal resistance: about 350Ω

Spectral range: 0.3～3μm.year

Stability: ±2%

Cosine response: ≤±7%

(When the solar altitude angle is 10°) Azimuth response error: ≤5%

(When the sun altitude angle is 10°)

Working environment temperature: -40℃～+50℃
