rainfall monitoring station

1.Rainfall monitoring station product overview

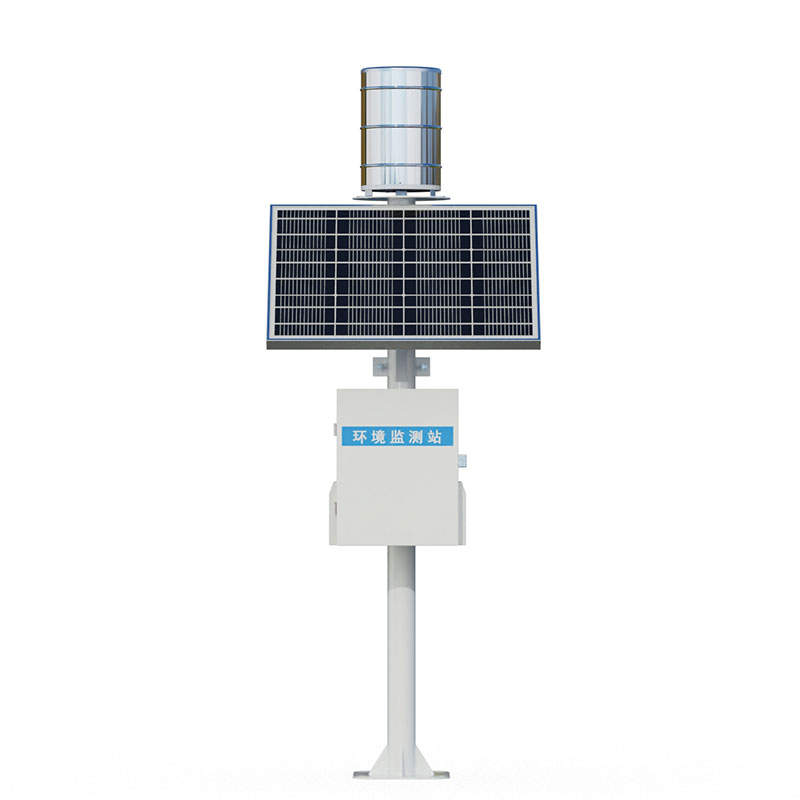

rainfall monitoring station is a kind of automatic rainfall monitoring equipment suitable for harsh field environment, which has the function of rainfall data collection and remote transmission.YJ1 rainfall monitoring station is a modern rainfall station based on the Internet of Things.It consists of stainless steel rainfall sensors, collectors, solar power supply systems, pole brackets, etc.The equipment can send rainfall data in the form of wireless remote transmission.The data can be sent wirelessly to the monitoring platform and log in to the Internet of Things platform to view real-time data and historical records.The rainfall data includes rainfall status, rainfall during each data collection interval, sky rainfall, weekly rainfall, monthly rainfall, annual rainfall, etc.The data sent to the platform can be directly exported to the desktop EXCEL table for users to perform further data analysis and processing.

rainfall monitoring station can be widely used in meteorology, flood control, agriculture, hydrology and water conservancy, environmental protection, highways, airports and ports.It can provide raw data for the meteorological observatory (station), hydrological station, agriculture and forestry, national defense, field surveying and reporting station and other relevant departments to measure precipitation, precipitation intensity, precipitation time and other parameters; it can also provide reference value real-time data for flood control, water supply scheduling, power stations, and reservoir water situation management.

2.Rainfall monitoring station product features

Low-power collector: Static power consumption is less than 1mA

Standard GPRS networking, support extended Bluetooth, and wired transmission

Support modbus485 sensor extension

Solar Charging Management MPPT Automatic Power Point Tracking

SMS alarm, send SMS to the specified mobile phone after exceeding the limit

Stainless steel protective box, corrosion-resistant and oxidation-resistant, waterproof grade IP66

3.Rainfall monitoring station technical parameters:

1.Measuring range: rain intensity 0~4mm/min

2.Measuring accuracy: ±0.2mm

3.Resolution: 0.2mm

4.Reporting form: wireless remote transmission

5.Rain bearing diameter: φ200mm

6.Power supply method: solar power supply

7.Solar power: 30W

8.Battery parameters: 20Ah

9.Bracket height: 1.5 meters

10.Working environment: -40℃~60℃

4.Introduction to rainfall monitoring station cloud platform

CS architecture software platform, supports direct observation of mobile phones and PC browsers without additional software installation.

Supports multiple accounts and multiple devices login

Support real-time data display and historical data display dashboard

Cloud servers and cloud data storage are stable and reliable, easy to scale, and load balancing.

Support SMS alarm and threshold settings

Support map display and viewing device information.

Supports data curve analysis

Supports data export table form

Supports data forwarding, HJ-212 protocol, TCP forwarding, http protocol, etc.

Supports data post-processing function

Support external running of javascript scripts
