instruments of the weather

1.Product introduction of instruments of the weather

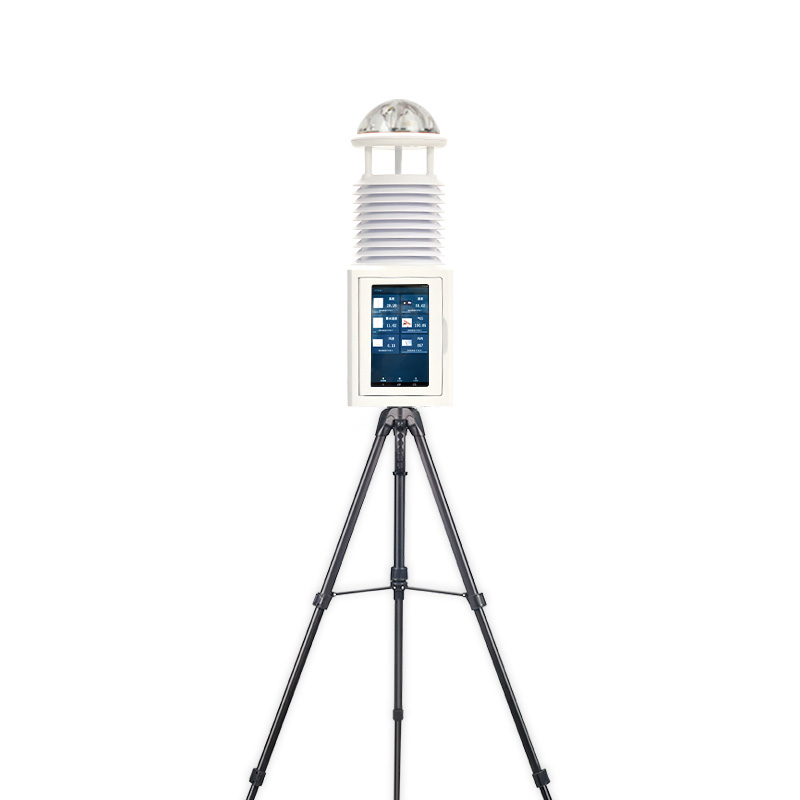

instruments of the weather There are thermometers, hygrometers, anemometers, and barometers for measuring meteorological elements of the surrounding environment.PQX12instruments of the weather is a high-precision automatic weather observation equipment that is highly integrated, has low power consumption, can be quickly installed, and is easy to use for field monitoring.

The equipment supports wireless transmission, requires no debugging, and can be quickly deployed.It is suitable for the acquisition of meteorological data such as short-term emergency meteorological observations and mobile meteorological monitoring.Widely used in meteorology, agriculture and forestry, environmental protection, oceans, airports, ports, scientific expeditions, campus education and other fields

The device uses a twelve-element integrated sensor that can measure six pollutant parameters of PM2.5, PM10, CO, SO2, NO2, and O3, as well as a total of 12 parameters such as air temperature, relative humidity, wind speed, wind direction, atmospheric pressure, and optical rainfall.Meteorological elements are observed in real time.The sensor housing is made of imported Stainless steel material, which is more effective against salt spray and other environments, and the protection level reaches IP65 or above.

2.Product features of instruments of the weather

1.The ultrasonic probe is hidden in the top cover to avoid interference from rain and snow accumulation and avoid obstruction by natural wind☆

2.The principle is to emit continuous variable frequency ultrasonic signals and detect wind speed and direction by measuring the relative phase☆

3.Integrated twelve elements of PM2.5, PM10, CO, SO2, NO2, O3, temperature, humidity, wind speed, wind direction, atmospheric pressure, and optical rainfall☆

4.Powered by lithium battery, with power display function

5.Shock-absorbing and protective trolley case, easy to carry

6.Aluminum alloy bracket, retractable

7.Android 7-inch touch screen

3.Technical parameters of instruments of the weather

1.Wind speed: 0～60m/s (±0.1m/s+0.01V);

2.Wind direction: 0~360° (±2°);

3.Air temperature: -40-80℃ (±0.3℃ (25℃));

4.Air humidity: 0-100%RH (±3%RH (20%~80%));

5.Atmospheric pressure: 300-1100hpa (±0.25%);

6.PM2.5: 0-1000ug/m3 (±10% (<500 micrograms));

7.PM10: 0-1000ug/m3 (±10% (<500 micrograms));

8.Optical rainfall: 0-4mm/min (≤±4%)

9.Carbon monoxide: 0-1000ppm (±2PPM)

10.Sulfur dioxide: 0-20PPM (±1PPM)

11.Nitrogen dioxide: 0-20PPM (±1PPM)

12.Ozone: 0-20PPM (±1PPM)

13.Data storage: no less than 500,000 items;

14.Power consumption: 1.75W

15.Lithium battery: capacity 12000maH, battery life ≥32h

16.Total weight of equipment: ≤5kg

17.Installation time: 1 person, no more than 2 minutes to complete the installation;

18.The production enterprise has ISO quality management system, environmental management system and occupational health management system certification.

19.The production enterprise has a computer software registration certificate

20.The production enterprise is a 3A credit enterprise

4.Introduction to instruments of the weather cloud platform

1.CS architecture software platform supports direct observation on mobile phones and PC browsers without installing additional software.

2.Support multiple accounts and multiple devices to log in

3.Support real-time data display and historical data display dashboard

4.Cloud servers and cloud data storage are stable and reliable, easy to expand and load balanced.

5.Support SMS alarm and threshold setting

6.Support map display and view device information.

7.Support data curve analysis

8.Support data export table format

9.Support data forwarding, HJ-212 protocol, TCP forwarding, http protocol, etc.

10.Support data post-processing function

11.Support external running of javascript scripts
