weather measuring devices

1.Product introduction of weather measuring devices

weather measuring devices are meteorological instruments that measure weather data. They can be used to measure weather parameters such as air temperature and humidity, wind speed, wind direction, and atmospheric pressure.Weather measuring devices are highly integrated, low power consumption, quick to install, and easy to use high-precision automatic weather observation equipment for field monitoring.

This equipment requires no debugging and can be quickly deployed.It is widely used in meteorology, agriculture, forestry, environmental protection, oceans, airports, ports, scientific expeditions, campus education and other fields.

Compared with traditional ultrasonic weather stations, our products overcome the need for high-precision timers and avoid measurement inaccuracies caused by sensor startup delays, demodulation circuit delays, and temperature changes.

This equipment innovatively uses a twelve-element integrated sensor, which can conduct real-time observations of wind speed, wind direction, temperature, humidity, air pressure, optical rainfall, pm2.5, pm10, CO, NO2, SO2, O3 and other meteorological elements, and can achieve Outdoor meteorological parameters are continuously monitored online 24 hours a day, and twelve parameters are output to the user at one time through the digital communication interface.

2.Product features of weather measuring devices

1.The ultrasonic probe is hidden in the top cover to avoid interference from rain and snow accumulation and avoid obstruction by natural wind (utility model patent, patent number ZL 2020 2 3215713.X) ☆

2.The principle is to emit continuous variable frequency ultrasonic signals and detect wind speed and direction by measuring the relative phase (invention patent, patent number ZL 2021 1 0237536.5) ☆

3.Wind speed, wind direction, temperature, humidity, air pressure, optical rainfall, pm2.5, pm10, CO, NO2, SO2, O3 twelve-element integrated sensor (utility model patent, patent number ZL 2020 2 3215649.5)☆

4.Standard GPRS; optional RJ45, Ethernet, 4-20ma, Lora transparent transmission, 4G transparent transmission, Bluetooth, 485 to USB and other transmission methods

5.Two-meter carbon steel bracket, the sensor can be directly connected to the top without a flange (utility model patent, patent number ZL 2020 2 3211795.0)

6.The sensor shell is made of imported ASA material, which is more effective against salt spray and other environments, and the protection level reaches IP65 or above.

3.Technical parameters of weather measuring devices

1.Wind speed: measurement principle ultrasonic, 0~60m/s (±0.1m/s) resolution 0.01m/s; (Invention patent, patent number ZL 2021 1 0237536.5)

2.Wind direction: Measurement principle ultrasonic, 0~360° (±2°); Resolution: 1°; (Invention patent, patent number ZL 2021 1 0237536.5)

3.Air temperature: Measurement principle: diode junction voltage method, -40-60℃ (±0.3℃), resolution 0.01℃; (Calibration certificate of Beijing Meteorological Bureau)

4.Air humidity: measurement principle capacitive, 0-100%RH (±3%RH), resolution: 0.01%RH; (Calibration certificate of Beijing Meteorological Bureau)

5.Atmospheric pressure: measurement principle piezoresistive, 300-1100Hpa (±0.25%), resolution 0.1hpa; (Calibration certificate of Beijing Meteorological Bureau)

6.PM2.5: Measurement principle: light scattering, 0-1000ug/m³ (±10%), resolution 1ug/m³;

7.PM10: Measurement principle: light scattering, 0-1000ug/m³ (±10%), resolution 1ug/m³;

8.Optical rainfall: measurement principle photoelectric, 0-4mm/min (≤±4%), resolution 0.01mm; (Invention patent, patent number ZL 2022 1 1306149.3)

9.Carbon monoxide: Measurement principle: electrochemical method, 0-1000PPM (±2PPM), resolution 1PPM;

10.Sulfur dioxide: measurement principle electrochemical method, 0-20PPM (±1PPM), resolution 0.1PPM;

11.Nitrogen dioxide: measurement principle electrochemical method, 0-20PPM (±1PPM), resolution 0.1PPM;

12.Ozone: Measurement principle: electrochemical method, 0-20PPM (±1PPM), resolution 0.1PPM;

13.Collector power supply interface: GX-12-3P plug, input voltage 5V, with RS232 output Json data format, collector power supply: DC5V±0.5V peak current 1A,

14.Sensor modbus, 485 interface: GX-12-4P plug, output power supply voltage 12V/1A, device configuration interface: GX-12-4P plug, input voltage 5V

15.Solar powered, equipped with lead-acid battery, optional 30W 20AH/50W 40AH/100W 100AH.Charge controller: 150W, MPPT automatic power point tracking, efficiency increased by 20%

16.Data upload interval: adjustable from 1 minute to 1000 minutes

17.Android 7-inch touch screen, screen size: 1024*600 RGB LCD

18.The whole machine has obtained the calibration certificate of the National Meteorological Station

19.The whole machine has obtained a utility model patent, patent number ZL 2020 2 3208599.8

20.The production enterprise has ISO quality management system, environmental management system and occupational health management system certification.

21.The production enterprise has a computer software registration certificate

22.The production enterprise is a 3A credit enterprise

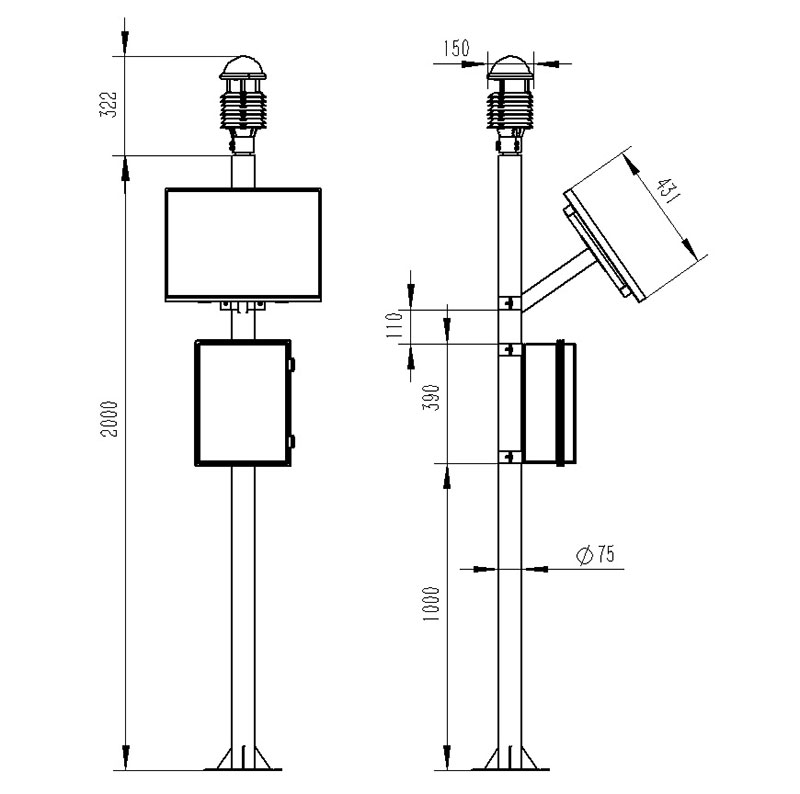

4.Product size diagram of weather measuring devices

5.Weather measuring devices product structure chart

6.Introduction to weather measuring devices host computer software

1.PC stand-alone version of data receiving, storage, viewing and analysis software

2.Support serial port data reception, processing and display

3.Support json string, modbus485 and other communication methods

4.The storage time can be set by oneself, and the collection time can be set by oneself in the modbus485 collection mode.

5.Support self-service adding, deleting, and modifying protocols, names, icons, etc.of monitoring parameters

6.Support data post-processing function

7.Supports external running of javascript scripts

7.Introduction to weather measuring devices Android APP

1.Android stand-alone version of data receiving, storage, viewing and analysis software

2.Support Bluetooth data reception

3.After the mobile phone is asleep, the software receives and processes it in the background

4.JSON data automatically adds devices, and modbus devices support scanning QR codes to add devices.

5.Supports historical data viewing, analysis, and table export, and supports curve display and single data point viewing.

6.Support data post-processing function

7.Supports external running of javascript scripts

8.Introduction to weather measuring devices cloud platform

1.CS architecture software platform supports direct observation on mobile phones and PC browsers without the need to install additional software.

2.Support multiple accounts and multiple devices to log in

3.Support real-time data display and historical data display dashboard

4.Cloud servers and cloud data storage are stable and reliable, easy to expand and load balanced.

5.Support SMS alarm and threshold setting

6.Support map display and view device information.

7.Support data curve analysis

8.Support data export table format

9.Support data forwarding, HJ-212 protocol, TCP forwarding, http protocol, etc.

10.Support data post-processing function

11.Support external running of javascript scripts
