Online dust Monitoring system

Online dust Monitoring system real-time online dust monitoring, with automatic control and sound and light alarm function, can detect wind speed, wind direction, temperature, humidity, etc.In order to improve the air quality, our company uses wireless sensor technology and laser dust testing equipment to independently develop the Online Dust Monitoring System . In addition to dust monitoring, it can also monitor environmental factors such as PM2.5, PM10, PM1.0, TSP, noise, ambient temperature, ambient humidity, wind speed, wind direction, etc. The test data of each test point is directly uploaded to the monitoring background through wireless communication, which greatly saves the monitoring cost of the environmental protection department and improves the monitoring efficiency.

Online dust Monitoring system application industry:

It is mainly suitable for construction sites, demolition sites, coal mines, industrial parks, communities, urban environments, residential areas, etc.

Online dust monitoring system technical parameters:

1. PM range: 0~1000ug/m3, resolution: 1ug/m3, accuracy: ±10%F·S;

Air temperature sensor range: -40～70℃, resolution: 0.1℃, accuracy: ±0.2℃;

Air humidity sensor range: 0-100%, resolution: 0.1%, accuracy: ±3%;

Wind speed sensor range: 0~60m/s, resolution: 0.1 m/s, accuracy: ±0.3m/s;

Wind direction sensor range: 8 directions;

Noise sensor range: 30~130db, resolution: 0.1db, accuracy: ± 0.5%F·S

2. Pm measurement adopts the principle of laser scattering, uses a fan as power, and has a built-in insect-proof net to prevent inaccurate data measurement due to small insects.

3. The device has 1 channel for shutter box (temperature, humidity, noise, PM2.5, PM10, air pressure) collection, 1 channel for wind speed collection, and 1 channel for wind direction collection.

4. Support secondary development, including networking module, default GPRS upload, free connection to government project platforms in various regions (4G upload method can be changed), default with 1 standard modbus output.

5. By default, it has one relay output. If Pm2.5 exceeds the limit, it can automatically connect to the fog cannon for on-site dust reduction control;

6. The LED screen display header can be changed at any time and anywhere. The header can be changed by configuring the APP and software;

7. The LED large screen size is 54cm*102cm, and can be changed to three or four lines;

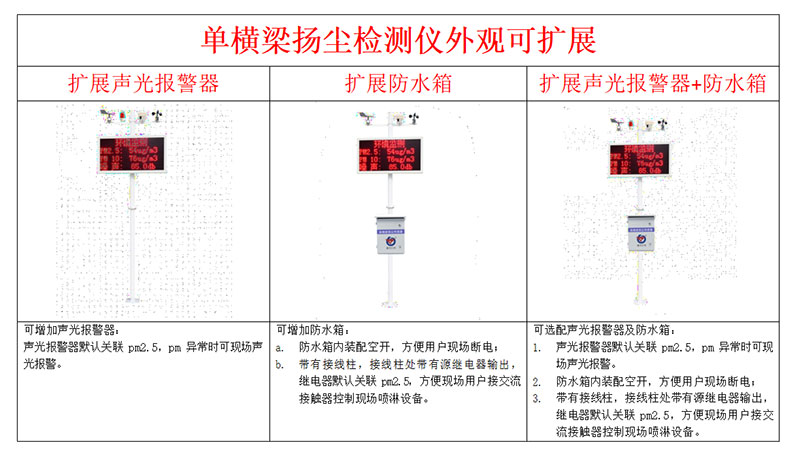

8. Optional on-site sound and light alarm, waterproof box, lightning rod

9. Simple and convenient installation, fool-style installation
