Explosion-proof Lightning monitor

1、Explosion-proof Lightning monitor Application Environment Description

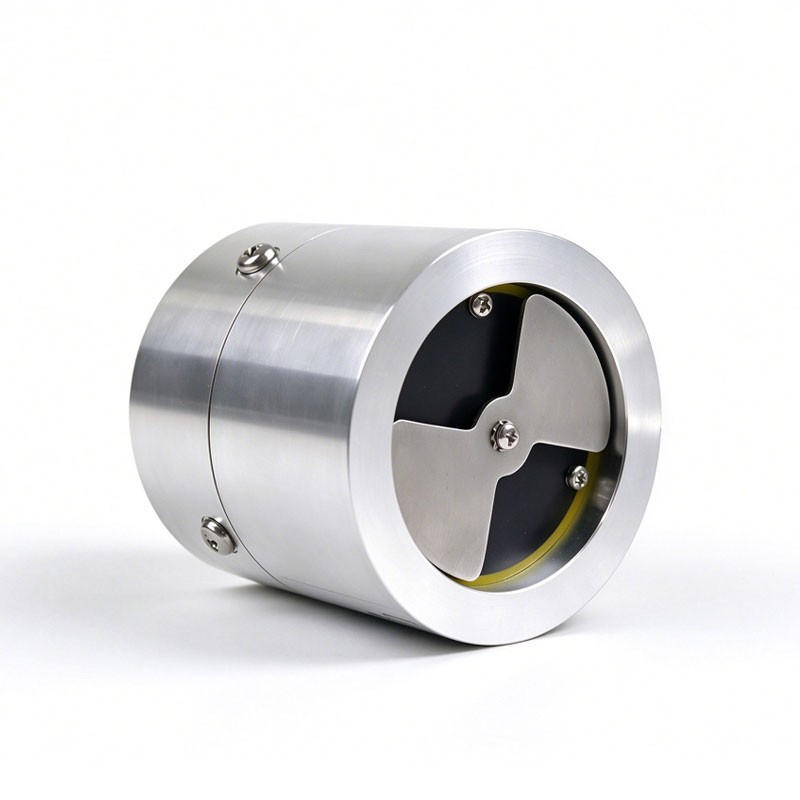

Explosion-proof Lightning monitor is a specialized device used to measure atmospheric electric field strength and its variations; it has a measurement range of approximately -100 kV/m to 100 kV/m and an accuracy of ±0.001% F.S.The Explosion-proof Lightning monitor is a lightning monitoring and early warning device designed for hazardous environments prone to flammability and explosiveness. It monitors atmospheric electric field strength and its trends in real-time, capturing the characteristic electric field changes associated with lightning activity. This provides essential data support for lightning risk monitoring, early warning, and safety protection in hazardous locations. Featuring an explosion-proof design—and compliant with relevant certifications and scope-of-use specifications—the device is suitable for sectors such as petrochemicals, oil and gas storage and transportation, and chemical manufacturing, where flammable/explosive gases or dusts are present. It enhances the safety and suitability of lightning monitoring equipment in complex, hazardous environments.

In the field of meteorological monitoring, the Explosion-proof Lightning monitor can be deployed at weather stations and monitoring points surrounding hazardous areas. By continuously monitoring atmospheric electric field fluctuations, it provides critical data for assessing lightning activity and issuing early warnings for meteorological hazards. Analyzing electric field strength and trends helps identify lightning risks and keeps management informed of changing weather conditions. By integrating this data with weather forecasts, on-site monitoring readings, and warning thresholds, appropriate safety measures can be implemented to safeguard production operations in hazardous environments.

The Explosion-proof Lightning monitor offers significant value in locations posing risks of fire or explosion, such as petrochemical facilities, natural gas storage and transport sites, oil depots, gas stations, and chemical industrial parks. Lightning strikes can cause equipment damage and production shutdowns, and in certain scenarios, lead to severe consequences like fires or explosions. Deploying this explosion-proof atmospheric electric field monitor in areas that meet the device's explosion-proof rating and installation requirements allows for real-time tracking of dynamic changes in the surrounding electric field. When monitoring data reaches preset warning thresholds, the system can trigger alarms or control signals based on configuration. This alerts personnel to take timely emergency actions—such as halting high-risk outdoor operations, intensifying on-site inspections, and implementing established lightning and static electricity protection measures—thereby mitigating the impact of lightning risks on personnel, production equipment, and storage and transportation facilities. Furthermore, Explosion-proof Lightning monitor can be applied in natural gas processing plants, coal chemical enterprises, hazardous chemical storage areas, and other industrial settings with explosion-proof requirements, serving as a supplementary monitoring tool for safety management in hazardous zones. By integrating with on-site alarm systems, monitoring platforms, and other safety monitoring equipment, it enables real-time electric field data acquisition, anomaly alerts, and centralized management, thereby helping enterprises refine their lightning risk monitoring systems and enhance safety management in hazardous environments.

2、Explosion-proof Lightning monitor Technical Performance and Specifications

1. Technical Parameters

3、Explosion-proof Lightning monitor Installation and Electrical Connection

1. Installation

1.1: This product is a precision instrument; avoid dropping or subjecting it to impacts.

1.2: Protect the equipment from high temperatures, water ingress, and freezing.

1.3: After unpacking, store the instrument in a dry, well-ventilated area free from corrosive gases. Handle with care during transport and avoid violent vibration. Dust, moisture, and drastic temperature fluctuations can affect the product's service life; therefore, avoid placing it in such environments.

Ensure the equipment is properly grounded during use.

2. Electrical Connection

The cable is a 4-core shielded cable; the wire assignments are as follows:

1 - Red - Power Supply (12VDC)

2 - Blue - Ground (GND)

3 - Green - 485B

4 - Yellow - 485A
