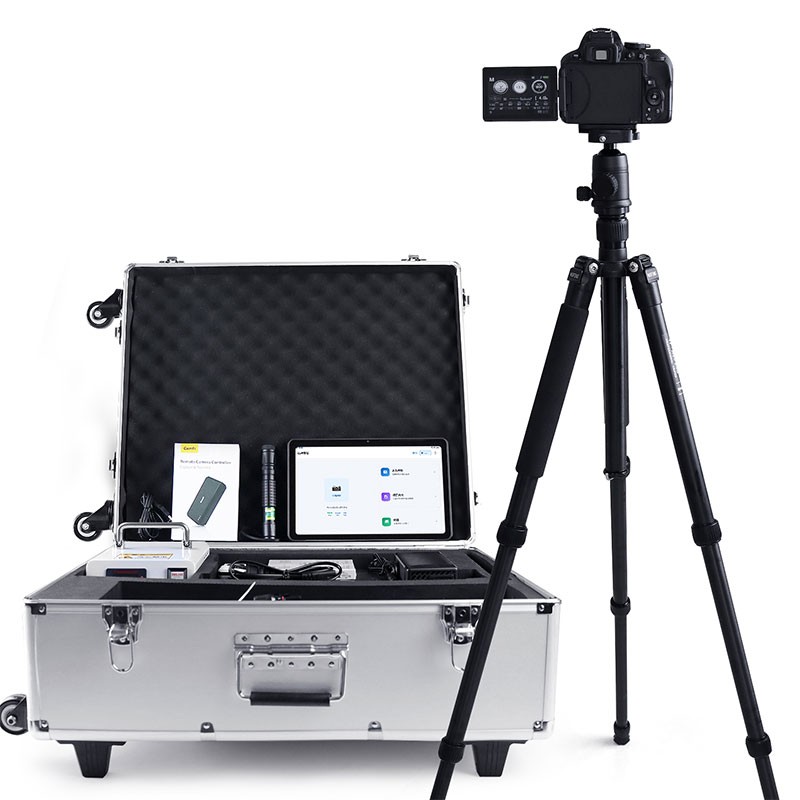

Solar Panel Tester

Model：FT-EL2+

Brand：fengtu

Get a Free Quote

Product details
Related products
Related articles

Solar Panel Tester Product Introduction:

Solar Panel Tester is a device for detecting internal defects in solar cells or battery modules. It utilizes the electroluminescence principle of crystalline silicon and can automatically identify defects using AI.Solar Panel Tester is used for internal defect detection in photovoltaic solar panels, helping users better control production and installation risks through product quality inspection.

Solar Panel Tester is equipped with a 24.16MP infrared camera, effectively helping users detect DC quality problems inside photovoltaic panels. The device is equipped with an energy storage power supply and a Wi-Fi wireless control module, making on-site inspection more convenient and faster.

It comes with AI defect recognition software for fully automatic defect detection. The software identifies defects using AI or allows for manual standard defect identification, automatic defect classification, and one-click generation of inspection reports.

Solar Panel Tester Application scenarios:

Suitable for incoming inspection of photovoltaic power plant modules and testing of modules on the mounting bracket after installation, as well as module quality inspection in warehouses/laboratories/factories.

Solar Panel Tester Identifiable defect types:

Hairline crack	Fragments	Fragments	Disengage	Black-hearted	cold solder joint
Process pollution	Low-efficiency film	Black border	Sintering	Overtime	Perforation

Solar Panel Tester Product Features and Advantages:

1. 24.16MP high-definition infrared camera with EL for clearer image quality.

2. Full-time autofocus module for higher imaging accuracy.

3. Wireless control for device testing and rapid imaging.

4. Programmable constant current power supply for on-site testing, enabling 24/7 uninterrupted testing.

5. Fully automatic testing operation with AI-generated defect identification, automatic classification and saving, and one-click report generation.

6. Energy storage power supply on-site testing requires no preparation.

7. 1.85-meter tripod support for convenient multi-angle testing of components.

8. Wireless remote operation testing of the entire unit; one person can complete the entire project.

9. Rugged and durable trolley case for lightweight and safe transport.

Solar Panel Tester Application areas:

Scene	Factory component, warehouse component, power station site component testing,
Test	Daytime: Outdoor anti-infrared dark room testing; indoor testing in a sunless environment Nighttime: Direct tripod testing, unaffected by artificial or moonlight
Object	Crystalline silicon modules, thin-film modules (customizable)
Quantity	Single-piece component imaging inspection

Solar Panel Tester Specifications:

Module	Configuration	Specifications
Camera module	Pixel	24.16 megapixels
	Resolution	6000x4000
	Chip	23.5x15.6mm, CMOS sensor
	Accuracy	1.0mm/pixel
	Detection speed	Adjustable 1-30s
	Low current testing	Can present clear crack imaging in 5A low current.
	Light shielding	Lighting, moonlight, starlight, indoor low-level sunlight, and sunlight below 100 lux have no effect on the test.
	Detection Area	4000mm*2000mm
	Lens	18-55mm infrared lens
	Focus mode	Full-time autofocus
	Battery	1040mAh
	Memory card	64GB
	Card reader	USB2.0
Power module	Capacity	10.4AH
	Battery cell	High-performance lithium batteries
	Output current	5A
	Current accuracy	0.1A
	Output voltage	60V
	Voltage accuracy	0.01V
	Load power	100W to 600W; upper limit not exceeding 700W
	Detection count	300-500 solar panels
	Control Panel	LED Digital Display Programmable Control Panel
	Function Settings	Wireless remote control power on and power off
	Power Saving Mode	Automatic power off after testing
	Steady-state module	Constant power supply output current and voltage are unaffected by changes in battery charge.
	Circuit Protection	Short-circuit protection, disconnection protection, reverse current protection, overheating protection, electrostatic protection, current-voltage adaptive matching for photovoltaic panels
	Power cable	10cm AC 3-pin input cable
	DC line	3m DC output cable, MC4 connector assembly
Computer	Tablet	Lenovo Tablet 8+128G
Wi-Fi	2.4G	2.4GWi-Fi Wireless Control Module
Software	Detection APP	Wireless, fully automatic camera and power supply cooperation for inspection, AI defect recognition or manual annotation after shooting, automatic defect classification, one-click generation of inspection reports, etc.
Support system	Detection bracket	1.85-meter aluminum alloy stand
Support system	Detect gimbal	Integrated bracket installation, 720-degree rotation
Positioning module	Detection and Localization	Cross-laser locator, quickly locates the position of the rear component on the quick-locating bracket, which can improve detection efficiency by several times.
Usage Environment	Desert, plateau, rooftop, hill, hillside, factory, rooftop, snow, greenhouse, agrivoltaics, aquavoltaics, wind-solar hybrid, and various other environments
Warranty and After-Sales Service	1-year warranty, 24H response, 72H fault resolution, spare parts coordination
