device for wind speed

1.Product introduction of device for wind speed

device for wind speed is a tool used to measure wind speed and direction, and is a commonly used instrument in weather stations.device for wind speed is a highly integrated, low power consumption, quick to install, high-precision meteorological observation equipment that is easy to use for field monitoring.

The equipment consists of five parts: meteorological sensor, collector, solar power supply system, pole bracket, and cloud platform.It requires no debugging and can be deployed quickly.It is widely used in tower cranes, cableways, ships, meteorology, agriculture, forestry, environmental protection, oceans, airports, ports, scientific expeditions, campus education and other fields.

2.Product features of device for wind speed

1.Low-power collector: static power consumption is less than 50uA

2.Standard GPRS networking, support for extended Bluetooth and wired transmission

3.7-inch Android touch screen, version: 4.4.2, quad-core Cortex™-A7, 512M/4G (optional)

4.Support modbus485 sensor expansion

5.Solar charging management MPPT automatic power point tracking

6.Three-meter carbon steel bracket, two-section flange butt joint

7.SMS alarm, send SMS to the designated mobile phone after exceeding the limit

8.Stainless steel material protective box, corrosion-resistant, anti-oxidation, waterproof grade IP66

3.Technical parameters of device for wind speed

1.Collector power supply interface: GX-12-3P plug, input voltage 5V, with RS232 output Json data format, collector power supply: DC5V±0.5V peak current 1A,

2.Sensor modbus, 485 interface: GX-12-4P plug, output power supply voltage 12V/1A, equipment configuration interface: GX-12-4P plug, input voltage 5V

3.Solar power supply, equipped with lead-acid battery, optional 30W 20AH/50W 40AH/100W 100AH.Charge controller: 150W, MPPT automatic power point tracking, efficiency increased by 20%

4.Data upload interval: adjustable from 1 minute to 1000 minutes

5.7-inch Android touch screen, screen size: 1024*600 RGB LCD (optional)

6.Sensor parameters

name	Measuring range	resolution	Accuracy
wind speed	0～30m/s	0.01m/s	±0.3m/s
wind direction	0～360° (16 directions)	1/16	<3°(>1.0m/s)

4.Device for wind speed product size chart

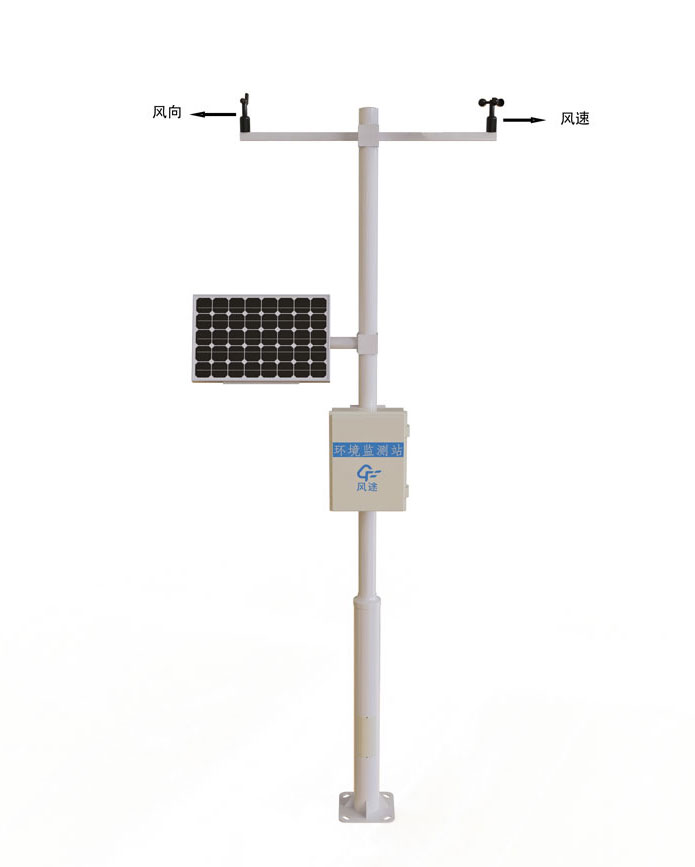

5.Device for wind speed product structure chart
