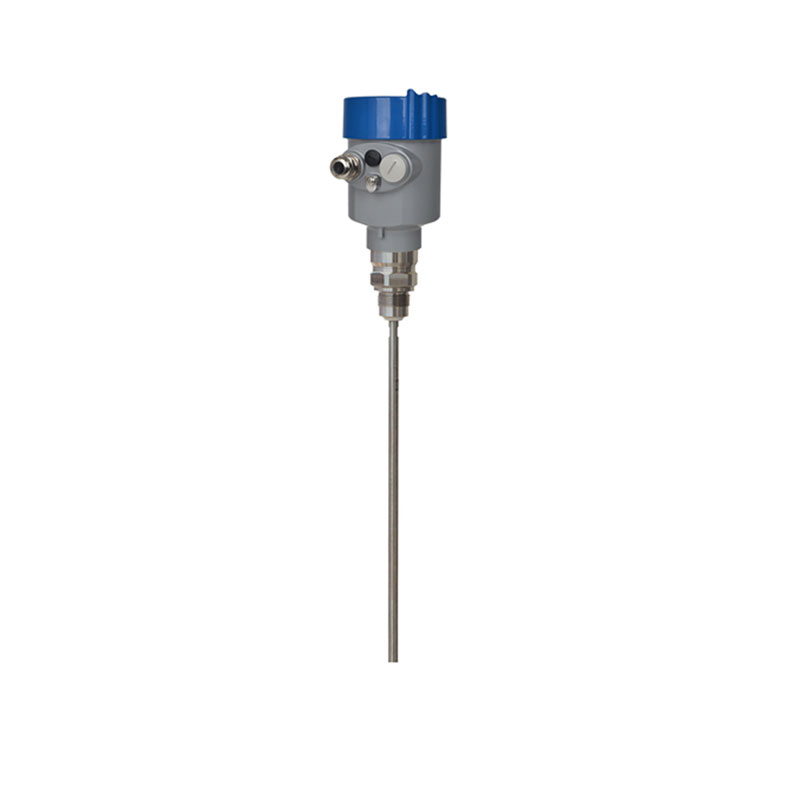

liquid level transmitter

1.Product principle of liquid level transmitter

liquid level transmitter is used to provide the most accurate product level, interface level and is ideal for remote tank measurement of small and medium-sized storage tanks.The high-frequency microwave pulses emitted by the guided wave radar propagate along the detection component (steel cable or steel rod). When encountering the measured medium, due to the sudden change of the dielectric constant, reflection occurs, and part of the pulse energy is reflected back. The time interval between the transmitted pulse and the reflected pulse is proportional to the distance of the measured medium.

2.Technical parameters of liquid level transmitter

Applicable media: liquid, solid powder

Application: liquid and solid powder measurement, complex process conditions

Explosion-proof certification: Exia IIC T6 Ga/Exd ia IIC T6 Gb

Measuring range: liquid 0~20 meters, solid powder 0~10 meters

Frequency: 500MHz-1.8GHz

Antenna: Single pole antenna

Measurement accuracy: ±10mm

Process temperature: (-40～250)℃

Process pressure: (-0.1～4)MPa

Signal output: (4～20)mA/HART

On-site display: four-digit LCD programmable

Power supply: two-wire system (DC24V)/four-wire system (DC24V/AC220V)

Housing: Aluminum/Plastic

3. Product features of liquid level transmitter

The antenna is small in size and easy to install; the non-contact radar has no wear and pollution.

Almost unaffected by corrosion and foam; almost unaffected by water vapor, temperature and pressure changes in the atmosphere.

Serious dust environment has little impact on the operation of high-frequency level meters.

The wavelength is shorter and reflects better on tilted solid surfaces.

The beam angle is small and the energy is concentrated, which enhances the echo capability and helps avoid interference.

The measurement blind area is smaller, and good results can be achieved for small tank measurements.

High signal-to-noise ratio for better performance even under fluctuating conditions.

High frequency, it is the best choice for measuring solids and low dielectric constant media.
