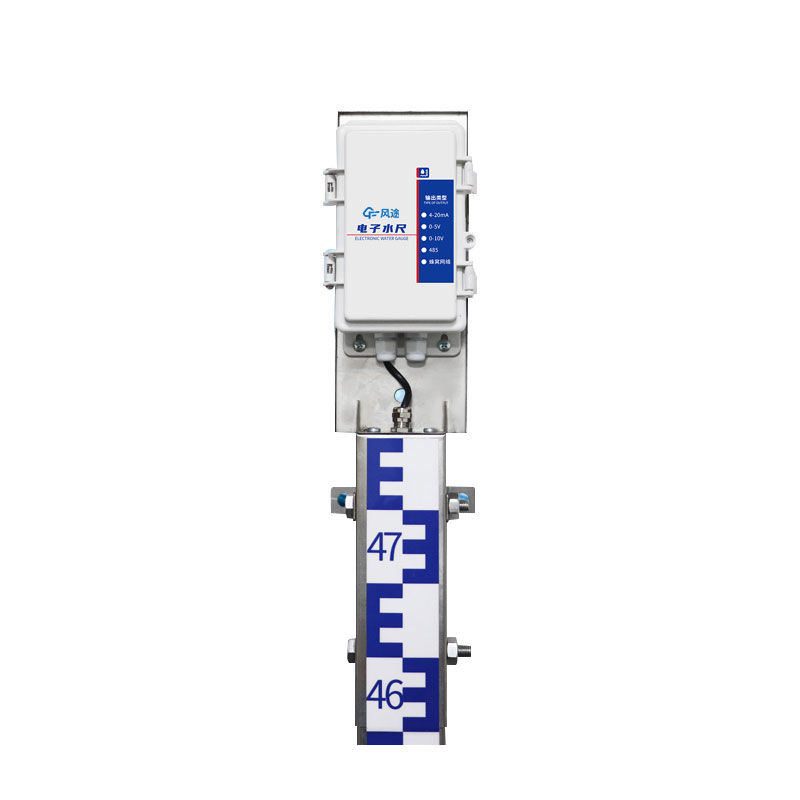

Water Level Staff Gauge for River

Water Level Staff Gauge for River is an integrated induction electronic water gauge composed of measurement part and circuit conversion transmission part.

Water Level Staff Gauge for River equipment consists of: host, water gauge node, collector, power supply system, pole

Working principle of Water Level Staff Gauge for River: Utilizing the weak conductivity of water and using advanced processor chips as controllers, water level data is obtained through measuring electrodes, and then transmitted after CPU digital encoding, division, sampling, and digital processing. Then, wired or wireless communication technology is used to send the water level data to the monitoring center or software, thereby playing the role of real-time water level monitoring and early warning.

Power supply: Solar power supply, 30W, 20AH

Transmission mode: 2G wireless transmission, 4G optional

Installation method: wall mounted

Equipment accuracy 1cm (full range accuracy)

Resolution: 1cm

Unit section specification: 80cm

Measuring length: 80cm*5

Communication interface: RS485 as standard, 4G, 4-20ma, 0-5v, 0-10v as optional

Parameter configuration: Configuration tool configures specific parameters

Working modes: air height mode, water depth measurement mode, tilt measurement mode

Maximum power consumption: host maximum power consumption 1W, water gauge maximum power consumption 0.05W

Control card switch: RS485 has a relay output by default, which can be arbitrarily associated with alarm output or used for water level upper and lower limit control.

Installation hole size: 86.2mm

Mounting hole diameter: 10mm
