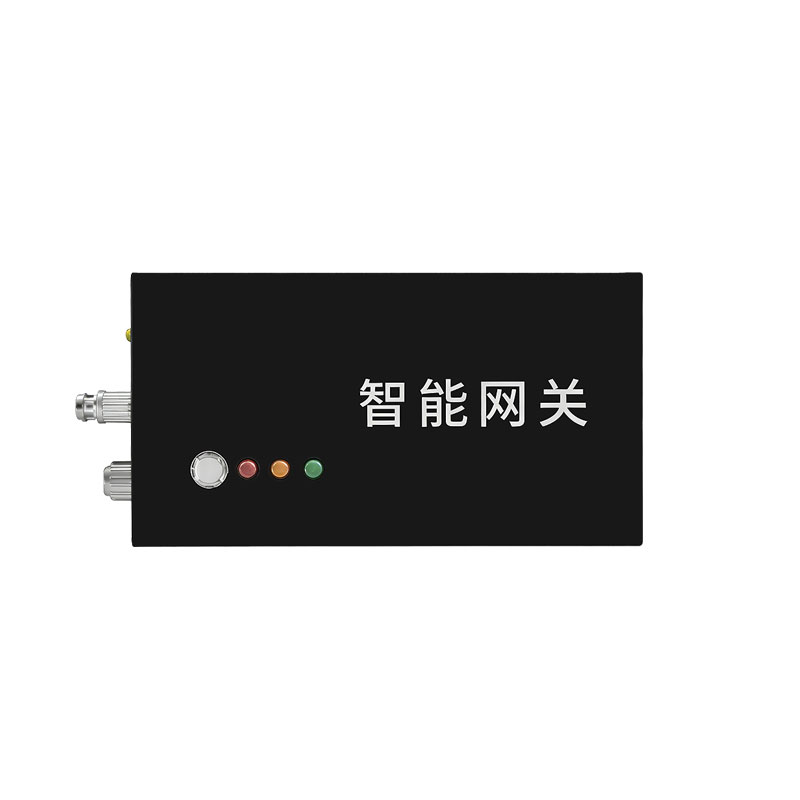

Termite Bait Stations and Monitoring Systems
Model：BYWG
Brand：fengtu
Termite Bait Stations and Monitoring Systems is a multi-protocol gateway with abundant expansion interfaces, allowing for the replacement or addition of modules as needed for different network configurations.
Get a Free Quote- Product details
- Related products
- Related articles
1、Termite Bait Stations and Monitoring Systems Product Application
Our Termite Bait Stations and Monitoring Systems product consists of several components, including an intelligent termite monitoring device, an intelligent termite monitoring gateway, PC-based management software, and a mobile application.
The BYWG is a multi-protocol gateway with abundant expansion interfaces, allowing for the replacement or addition of modules to meet different networking requirements. It has also undergone rigorous waterproofing and environmental testing to withstand various extreme environments.
2、Termite Bait Stations and Monitoring Systems Technical Parameters
| Serial number | Parameter |
| Average power | 1.2W@12.6V |
| Working voltage | DC15~25V@Solar power; DC10~25V@Adaptor power |
| Working temperature | -40℃~+85℃ |
| Working humidity | 10%~90% |
| Product size | 685mm×430mm×447mm |
| Gateway weight | ＜2kg |
| Protection level | IP67 |
| Communication protocol | LoRa/WLAN etc. customized mode |
| LoRa frequency | 470~510MHz |
| Tx maximum frequency | 20dBm |
| Rx sensitivity | -130DBM |
| Modulation scheme | DPFSK |
| Number of equipment | Support >300 devices access |
| Wireless wake-up | One-to-one wireless wake-up, data no crosstalk |
