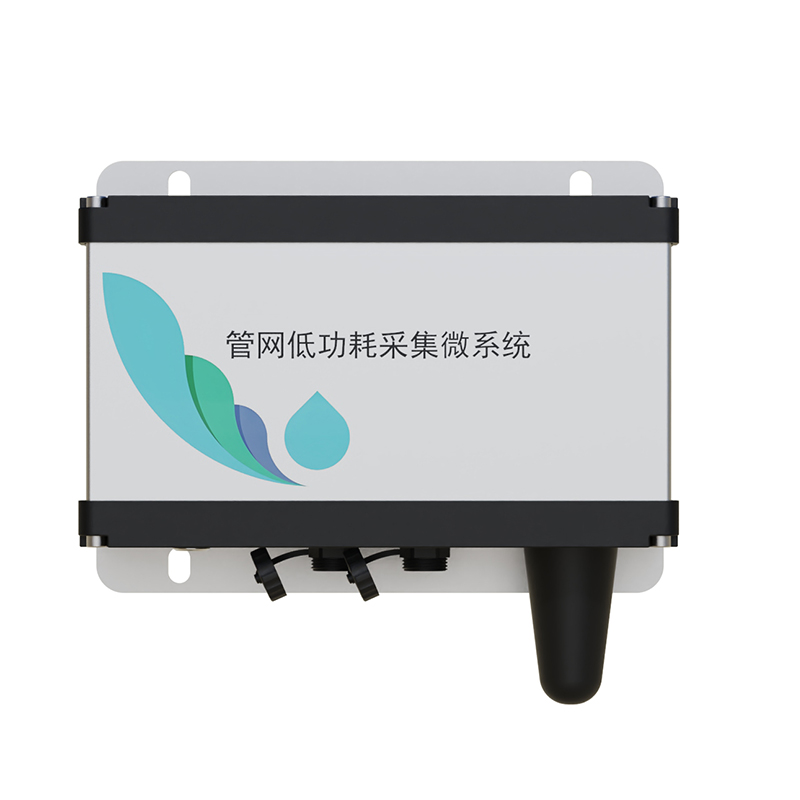

Drainage network water quality monitoring system

1.Drainage network water quality monitoring system product introduction

Drainage network water quality monitoring system is mainly deployed at key nodes of rain and sewage pipes and drainage rivers to grasp the water quality of urban drainage pipe networks in real time.Drainage network water quality monitoring system is an online monitoring system independently developed and produced by our company that conducts real-time monitoring of urban water quality.

It can directly monitor and obtain temperature, conductivity, and pH.

Water quality monitoring equipment has functions such as equipment failure alarm, water quality exceeding the standard alarm, and measured value exceeding the limit alarm, which is of great significance to ensuring the quality of the water environment.

2.Drainage network water quality monitoring system product features

1.Small size, monitoring equipment and data acquisition equipment are both highly integrated products;

2.Simple installation, installed on the manhole wall of the pipeline network, without restrictions on conditions;

3.One-click power-on, it can be used when powered on, no configuration parameters are required;

4.IP68 protection level, explosion-proof.The sensors and collectors are made of high waterproof materials and structures;

5.Ultra-low power consumption, built-in high-performance battery, can work continuously for 180 days, and can expand battery capacity;

6.Basically maintenance-free and can operate stably underground for a long time;

7.Various application scenarios can be applied in urban rainwater, sewage and other sewage discharge pipelines;

8.Strong expansion and flexible configuration, and can measure parameters such as water quality, flow rate, liquid level, manhole cover status;

3.Drainage network water quality monitoring system composition

The drainage pipeline online monitoring system consists of front-end sensors, data acquisition control units, data transmission units, back-end data reception services, environmental monitoring and control platforms and data processing and analysis application functions.

4.Drainage network water quality monitoring system sensor parameters

5.Drainage network water quality monitoring system communication method

4G or NB-IoT

6.Drainage network water quality monitoring system cloud platform functions

Permission management: You can change, delete, add and other operations on monitoring device information based on its permissions.

Realize data browsing, access, export and download, and query monitoring data.The data query time is greater than 3 years.

Real-time data: The platform can display real-time data of monitoring points;

Equipment map: Each monitoring data and instrument information are in real time through the map;

The environmental monitoring cloud platform can view communication card number, communication status between instruments and platforms, signal strength, instrument power and other functions.

Historical data query: You can query the historical data of a monitoring point.It can be displayed through the report.The report can be exported as an EXCEL file or printed directly.

Data query: Query the parameters of each device according to conditions, such as setting query value range, date, alarm value, etc.; the average value of the extreme values of time, day, and month can be counted.

Data report: It can analyze and display monthly data reports of each monitoring point channel, and supports EXCEL export;

Remote entry: Remote data re-entry: historical data for the last month can be read from the on-site terminal for re-entry processing;

Computer input: Import and store EXCEL format data to the database.
