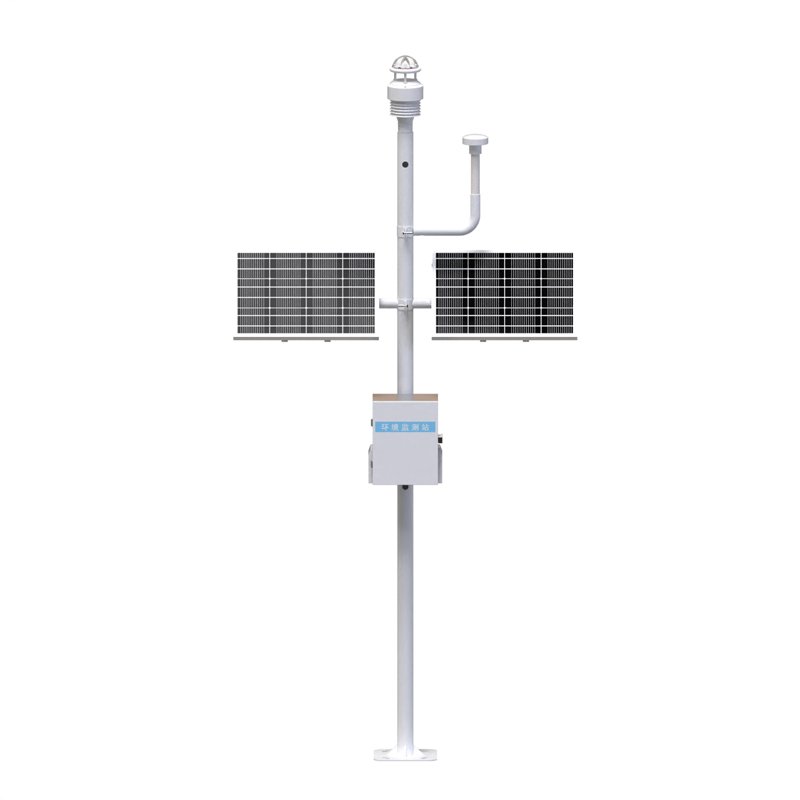

Beidou Ecological and Environmental Monitoring Station

1、Beidou Ecological and Environmental Monitoring Station Product Overview

Beidou Ecological and Environmental Monitoring Station supports data transmission from Beidou satellites and can monitor meteorological elements such as wind speed, wind direction, temperature, humidity, and atmospheric pressure.Beidou Ecological and Environmental Monitoring Station FZ6 is an automated weather monitoring device independently developed by our company, combining BeiDou-3 regional short message communication technology with meteorological and environmental monitoring technology.This system features autonomous operation, real-time transmission, intelligent monitoring, and precise forecasting.It provides 24-hour uninterrupted monitoring of meteorological and environmental changes, significantly addressing environmental monitoring challenges in areas with no or weak signal coverage.Currently, BeiDou automatic weather stations are widely deployed across China, providing crucial support for weather forecasting and environmental early warning.

Compared to traditional ultrasonic weather stations, our product overcomes the need for high-precision timers and avoids measurement inaccuracies caused by sensor startup delays, demodulation circuit delays, and temperature fluctuations.This device innovatively utilizes an eight-element integrated sensor to provide real-time observation of meteorological elements such as ultrasonic wind speed and direction, temperature, humidity, atmospheric pressure, optical rainfall, global radiation, and negative oxygen ions.This enables 24-hour continuous online monitoring of outdoor meteorological parameters, and all eight parameters are simultaneously transmitted to the user via a digital communication interface.

2、Beidou Ecological and Environmental Monitoring Station Product Features

1.Ultrasonic probe concealed in the top cover, preventing interference from rain and snow accumulation and preventing natural wind obstruction☆

2.Detects wind speed and direction by emitting a continuously variable frequency ultrasonic signal and measuring its relative phase.☆

3.Integrated sensor for wind speed, direction, temperature, humidity, atmospheric pressure, optical rainfall, total radiation, and negative oxygen ions☆

4.Two-meter carbon steel bracket allows for direct sensor mounting without a flange on the top.

5.The sensor housing is made of imported ASA material, offering enhanced resistance to salt spray and other environmental conditions, achieving an IP65 rating and above.

3、Beidou Ecological and Environmental Monitoring Station Technical Parameters

1.Wind Speed: Measurement principle: Ultrasonic, 0-60 m/s (±0.1 m/s + 0.01 V), resolution: 0.01 m/s

2.Wind Direction: Measurement principle: Ultrasonic, 0-360° (±2°), resolution: 1°

3.Air Temperature: Measurement principle: Diode junction voltage method, -40-80°C (±0.3°C at 25°C), resolution: 0.01°

4.Air Humidity: Measurement principle: Capacitive, 0-100% RH (±3% RH (20%-80%)), resolution: 0.01% RH

5.Atmospheric Pressure: Piezoresistive, 300-1100 HPa (±0.25%), resolution: 0.1 hPa

6.Optical Rainfall: Measurement principle: Photoelectric, 0- 4mm/min (≤±4%), resolution 0.01mm;

7.Total Radiation: Measurement principle: Photoelectric effect, 0-1242W/㎡ (<±3%), resolution 1W/㎡

8.Negative Oxygen Ions: Measurement principle: Cylindrical electrode suction method; 0-100,000/cm³, resolution 1 ion/cm³; Measurement error: ±10% of reading; Ion mobility ≤±20%; Measurement resolution: 1 ion/cm³;

9.Beidou Data Transmission Terminal: Power supply: DC12V regulated power supply, 3A current; Power: Transmit power 36W, standby power 1W

10.Standard Beidou card: Transmission capacity 260 bytes, message service 1 year

11.RDSS Specifications: Communication success rate 95%

12.Transmitting frequencies Lf0, Lf1, Lf2

13.Information Transmission Method: Chinese characters, codes, mixed encoding

14.Installation Angle: The antenna should face vertically upward, with no obstructions directly above the antenna.Avoid installation in locations subject to strong magnetic interference, such as high-voltage towers or high-power base stations.

15.External Data Interface: RS485, RS232

16.Reliability: Operating temperature -20°C to +70°C, storage temperature -40°C to +85°C, IP67 protection

Data collector power supply: GX-12-4P, regulated DC12V input voltage, RS485 output in JSON format

17.Sensor Modbus-RTU protocol, GX-12-4P plug-in 485 interface, output power voltage 12V/1-3A, device configuration interface: GX-12-4P plug, input voltage 12V

18.Solar power supply: 100W solar panel, 100AH gel battery, charge controller: 150W

19.Data upload interval: adjustable from 2 minutes to 1000 minutes

20.Android 7-inch touchscreen, screen resolution: 1024*600 RGB LCD (optional)

21.Manufacturer holds ISO quality management system, environmental management system, and occupational health management system certifications

22.Manufacturer holds computer software registration certificate

23.Manufacturer is a AAA-rated credit enterprise
