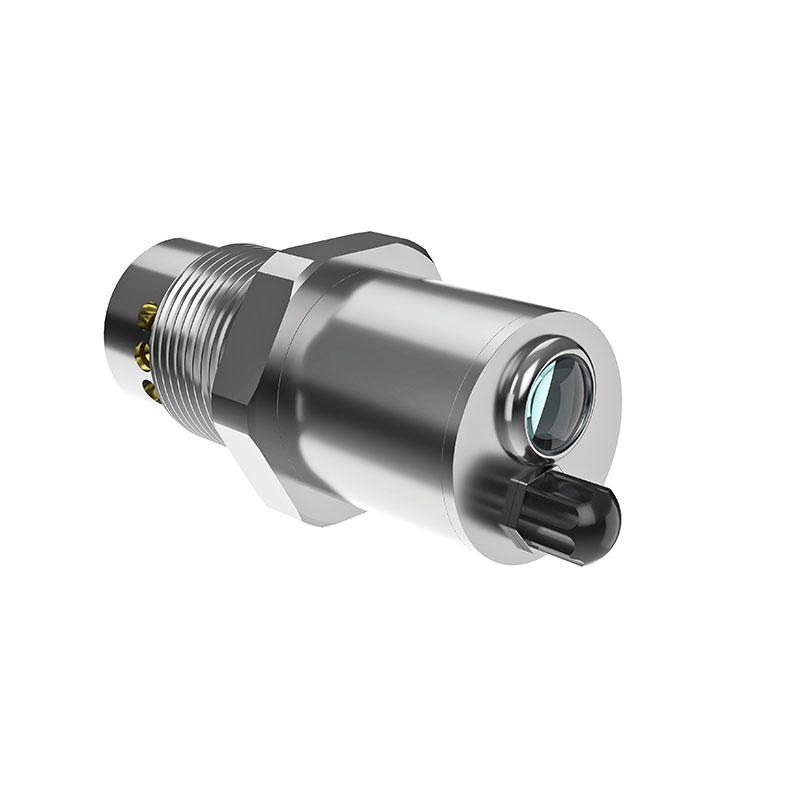

Oil Pressure Sensor

1、Oil Pressure Sensor Product Introduction

Oil Pressure Sensor provides 24-hour continuous monitoring, providing real-time feedback on oil level and pressure in the oil tank, thus improving the health of the lubricating oil and equipment.Oil Pressure Sensor is used for real-time, online monitoring of lubricating oil health and level. Continuous monitoring of oil condition improves condition-based maintenance efficiency, optimizes oil change cycles, and reduces reliance on offline analysis.

Oil leakage is a major cause of abnormal equipment wear; oil level monitoring provides timely alarms for abnormal oil levels.

Oil Pressure Sensor integrates electrochemical impedance spectroscopy (EIS) technology to detect oil impedance spectra, ultrasonic viscosity monitoring technology to detect oil viscosity and density, and micro-water monitoring technology to detect trace amounts of water and water activity. It can also monitor dissolved water and free water, thus obtaining the oil's health status. Based on our years of experience in online oil monitoring, it analyzes the oil health index. It assesses the wear and tear of lubricating oil additives, monitors the degree of oil aging, and determines the oil contamination status.

Oil Pressure Sensor helps users improve the health management of equipment assets, assisting in maintenance decisions based on real-time monitoring results and preventing abnormal wear and corrosion caused by oil aging and contamination.

2、Oil Pressure Sensor Features

Wide range of applications, suitable for all lubricating oils

Simultaneous measurement of multiple parameters allows for timely detection of lubricating oil contamination and aging, helping users optimize oil change intervals.

Includes pressure monitoring; real-time oil level monitoring prevents abnormal equipment wear caused by excessive or insufficient oil.

No customer-defined free water calibration required; sensor features automatic calibration.

Big data oil analysis algorithms help customers solve diagnostic challenges; includes built-in health index analysis.

24/7 uninterrupted monitoring provides timely feedback on oil status.

Strong compatibility; compatible with CAN-J1939 and RS485-Modbus RTU.

Suitable for monitoring under high-speed flow conditions; viscosity interference resistance is stronger than similar sensors; robust and durable.

Integrated structural design with alarm indicator lights for easy on-site inspection.

3、Oil Pressure Sensor Application areas

Lubricating oil is the "blood" of critical equipment. Lubricating oil failure directly leads to abnormal wear of mechanical structures and critical functional components, a major cause of large equipment failures and serious accidents.

Oil Pressure Sensor can continuously monitor the aging and contamination levels of the oil in the hydraulic system 24 hours a day, providing real-time feedback on the oil's operating status. This helps users avoid or mitigate equipment failures caused by lubricating oil failure.

Oil Pressure Sensor can be widely used in industries such as power, mining, cement, shipbuilding, military, industrial manufacturing, papermaking, petrochemicals, transportation, metallurgy, aviation, oil fields, and ports, for applications such as wind turbine gearboxes, aircraft/helicopter gearboxes, hydraulic transmission systems, machining centers, steam turbines, gearboxes, and gasoline/diesel engines.

4、Oil Pressure Sensor Technical parameters

Dielectric Constant

Dielectric Constant: 1~10;

Dielectric Constant Accuracy: ±0.01 (Absolute Accuracy);

Water Activity

Measurement Range: 0…1aw

Measurement Accuracy

0…0.6; ±0.02aw

0.6…0.9; ±0.03aw

0.9…1; ±0.04aw

Response Time (Typical): <1 minute

Dissolved Water Content

Measurement Range: 0…10000ppm, 0~1% (Applicable to mineral transformer oil)

Measurement Accuracy: ±10%

Free Water Content:

Measurement Range (Absolute Accuracy): 0~5% (±0.1%), 5%~phase reversal point (±2%), 0~100%

Temperature Stability: 0.01% water/℃ Resolution: 100ppm

Viscosity Parameters:

Dynamic Viscosity: 1~10000CP; Accuracy: 2%

Kinematic Viscosity: 1~12000CST; Accuracy: 2%

Density Parameters:

Measuring Range: 600kg/m³~1300kg/m³

Accuracy: 2%

Pressure and Level:

Pressure Range: 0～100kPa……0～2MPa

Overload Pressure: 1.5 times full-scale pressure

Accuracy: ±0.5%F.S. BFSL@25℃

Total Error: ±1.0%F.S. (including calibration error and temperature drift)

Level Range: 0~1000mm (customizable)

Accuracy: ±0.5%F.S. BFSL@25℃

Temperature

Measurement Range: −40...120°C

Accuracy (at+25°C): ±0.2°C

Operating Temperature: −40...+85°C

Storage Temperature: −40...+85°C

Permissible Oil Temperature: −40...+120°C

Health Index: 0~100 (Health level and alarm points can be customized according to customer needs)

Output

Digital Signal: RS485 MODBUS-RTU (RS232 optional) Analog Signal: 4~20 mA, 0~20 mA Resistance load < 500Ω

Other
Mechanical interface: G1

Pressure range up to 10Mpa

Material: Hard anodized aluminum (top cable exit), stainless steel (side cable exit) (material optional)

Protection rating IP67

Power supply DC 9V-36V

Power supply current < 5mA + load current

Transmitter weight < 300g

Total package weight < 570g

Cable specification M8 4-core

Cable length 2 meters

Complies with standards CE certification EN 61326-1 EN 61326-2-3 ICES-003 B
