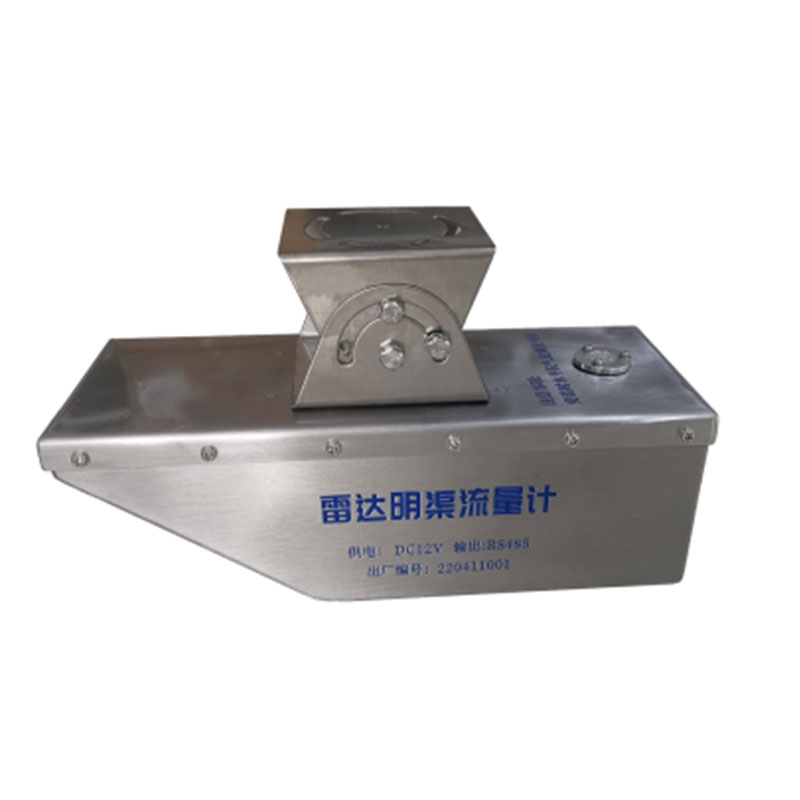

Radar Flow Meters uses a K-band planar microstrip array antenna for non-contact flow measurement

Radar Flow Meters is a non-contact flow measurement device utilizing a K-band planar microstrip array antenna, suitable for flow measurement in rivers, canals, natural streams, and reservoir dams. It can be used in various professional fields such as hydrological surveys, agricultural irrigation, and municipal drainage.

Radar Flow Meters measures flow velocity by emitting microwave signals to the water surface and receiving the reflected signals. The core of the device, the K-band planar microstrip array antenna, generates a highly concentrated beam. This antenna design offers excellent directionality and interference resistance. When the radar waves contact the flowing water surface, their reflection frequency shifts according to the Doppler effect. The device precisely calculates this frequency change to determine the water surface velocity. Simultaneously, the device measures the water level using radar ranging principles. Combining this with known river channel cross-section parameters, the system calculates real-time flow data.

The device is typically installed on bridges, bank-side brackets, or dedicated poles, maintaining a certain height above and directly facing the water surface for non-contact detection. This installation method avoids obstructing water flow and eliminates the entanglement, sedimentation, and corrosion problems associated with traditional contact-type instruments. It is particularly suitable for complex hydrological environments such as flood periods, rapid currents, or polluted waters where contact-type instruments are difficult to use.

In practical applications, the Radar Flow Meters demonstrates several technical advantages. Its K-band frequency has moderate penetration capabilities and is relatively unaffected by rain and fog, ensuring measurement stability in most outdoor environments. The planar microstrip antenna structure is compact and easily integrated into a protective casing, suitable for long-term field deployment. The device typically features data storage and wireless transmission capabilities, allowing for continuous flow data sequences to be obtained via a remote monitoring platform, forming a complete hydrological process record.

In hydrological surveys, this device provides critical data for water resource assessment and flood warning. In agricultural irrigation management, it helps achieve precise metering of canal water distribution. For municipal drainage systems, the Radar Flow Meters can monitor pipeline discharge flow, providing a basis for urban flood control and inland river management. Furthermore, it can also be used in professional scenarios such as hydropower plant tailwater monitoring and ecological flow regulation.

When using the Radar Flow Meters, attention should be paid to the selection of the installation location. The installation point should avoid areas with abnormal flow patterns such as vortices and backflows, ensuring that the radar beam covers a representative cross-section of the water flow. The installation angle and height must be set according to technical requirements, and the equipment's mounting should be checked regularly. Although the device itself does not need to be in contact with the water, it is still recommended to regularly clean the radar window to prevent long-term accumulation of dirt from affecting signal quality.

Overall, the Radar Flow Meters, based on a K-band planar microstrip array antenna, provides a reliable non-contact flow measurement solution. It demonstrates applicability in various open water flow monitoring tasks, and its measurement data provides practical technical support for water resource management, engineering planning, and scientific research in related fields.
