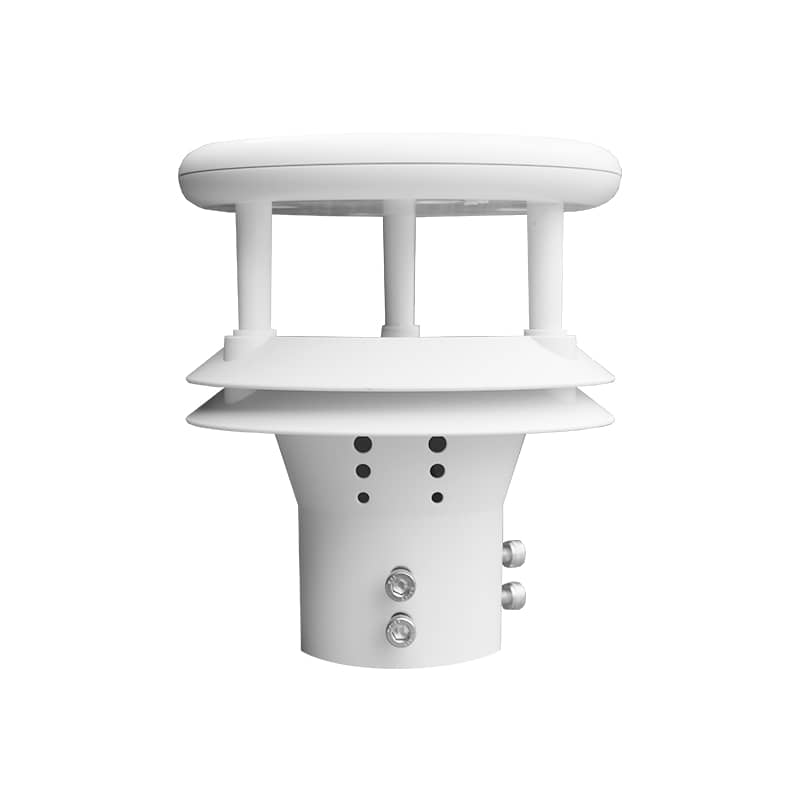

Ultrasonic Wind Speed And Direction Sensor: Principles and Applications

Ultrasonic Wind Speed And Direction Sensor is a wind speed and direction measuring instrument developed based on the principle of ultrasound. It utilizes the time difference in ultrasonic wave propagation to measure wind speed and direction.

Ultrasonic Wind Speed And Direction Sensor can measure wind speeds from 0-60 meters per second and provides omnidirectional wind direction data. Its design has no moving parts, making it maintenance-free and suitable for a wide range of applications. As a device that measures wind speed and direction using ultrasonic technology, it continuously monitors air movement and provides accurate wind speed and direction measurements.

The core working principle of Ultrasonic Wind Speed And Direction Sensor relies on the propagation characteristics of ultrasonic waves in the air. The sensor is typically equipped with one or more pairs of ultrasonic transducers that transmit and receive ultrasonic signals. When the air is still, the propagation time of the ultrasonic wave over a fixed distance is constant. Once the air begins to move, i.e., wind is generated, it affects the propagation speed of the ultrasonic wave. The propagation speed of the ultrasonic wave increases in the downwind direction and decreases in the upwind direction. By accurately measuring these minute differences in propagation time, the sensor can calculate the actual wind speed and direction. This measurement method is entirely based on physical principles and does not involve any mechanical moving parts, thus ensuring the accuracy and reliability of the measurement.

Compared with traditional anemometers or wind vanes, Ultrasonic Wind Speed And Direction Sensor has significant advantages. Because it has no mechanical moving parts, it fundamentally avoids problems such as mechanical wear, bearing aging, and freezing. This structural feature allows the sensor to operate stably for a long time under harsh weather conditions, greatly reducing maintenance requirements. In terms of measurement performance, the ultrasonic sensor can capture rapid changes in instantaneous wind speed and direction, with a short response time and high measurement accuracy. Especially under low wind speed conditions, the ultrasonic sensor can still provide accurate measurement data, while traditional mechanical sensors often struggle to achieve accurate measurements due to limitations in starting wind speed.

The application range of Ultrasonic Wind Speed And Direction Sensor is quite extensive. In the field of meteorological observation, it is widely used in ground meteorological stations, upper-air sounding, and agricultural meteorological monitoring. In environmental monitoring, the sensor is often used in atmospheric pollution dispersion studies, urban environmental monitoring, and industrial park environmental assessments. In the transportation sector, meteorological monitoring systems at airports, ports, and highways all rely on Ultrasonic Wind Speed And Direction Sensor to provide real-time wind field data. Furthermore, it also finds important applications in the wind power industry, construction engineering, and military defense. In practical use, the installation and maintenance of Ultrasonic Wind Speed And Direction Sensor require attention to several aspects. During installation, an open area should be chosen, avoiding obstacles such as buildings and trees that could interfere with the wind field. The sensor needs to be installed horizontally to ensure the accuracy of the measurement baseline. Although the sensor itself does not require regular maintenance, the connection lines should be checked periodically, and the sensor surface should be cleaned to prevent dust and ice accumulation from affecting the normal transmission of ultrasonic signals. Modern Ultrasonic Wind Speed And Direction Sensor typically come equipped with data output interfaces, allowing for easy connection to various data acquisition systems for remote monitoring and data analysis.

With technological advancements, Ultrasonic Wind Speed And Direction Sensor are developing towards higher accuracy, greater reliability, and lower power consumption. New sensors utilize digital signal processing technology to effectively filter out environmental noise interference and improve measurement stability. Some advanced products also feature self-diagnostic functions, allowing for real-time monitoring of the sensor's operating status and timely detection of potential problems. In terms of power supply, low-power design makes off-grid applications such as solar power possible, further expanding the sensor's application scenarios.

In summary, Ultrasonic Wind Speed And Direction Sensor, as an advanced wind measurement instrument, plays an increasingly important role in modern meteorological monitoring, environmental monitoring, and industrial applications due to its high accuracy, high reliability, and maintenance-free characteristics. Its ultrasonic-based measurement method provides more accurate and reliable wind field data, offering an ideal technical solution for wind-related monitoring needs in various industries. With continuous technological progress, Ultrasonic Wind Speed And Direction Sensor will demonstrate its application value in even more fields.
