location：Home>News>Sensor encyclopedia>how does a rain gauge work

how does a rain gauge work

time：2024-12-25 13:51:41 source：Weather Station viewed：365 time

1.Technical indicators of how does a rain gauge work

how does a rain gauge work? Placed in an open area, it is measured based on the height of the precipitation that has accumulated in the container at a given time, and the change in rainfall over time is recorded.

1.Power supply: DC12V

2.Power consumption: 0.02W

3.Working environment: 0~50℃

4.Communication interface: RS485

5.Working current: 2mA DC12V

6.Minimum data interval: 0.5S

2.Parameters of how does a rain gauge work

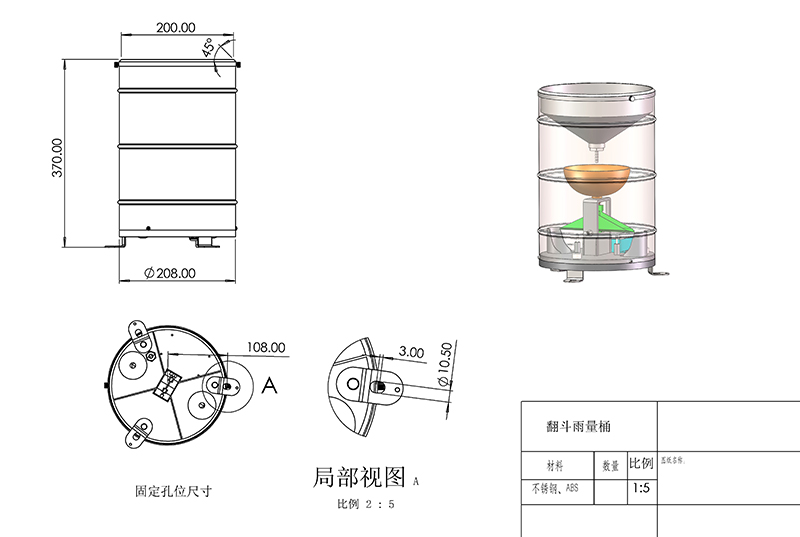

Rain gauge barrel diameter	Φ200mm
working temperature	0～50℃
Working humidity	<95%(no condensation)
error	≤±2%
resolution	0.2mm
Rain intensity range	0mm～4mm/min, the maximum rain intensity allowed is 8mm/min
Heavy rain intensity range	0～10mm/min, the maximum rain intensity allowed is 15mm/min
Output mode	Modbus485
